Hielscher - Ultrasound Technology

Work space in the laboratory is precious. Therefore we supply ultrasonic processors in a compact design: Power supply, generator , control and transducer , all of which are located in an aesthetic housing. No additional cables impede. The selection of the ultrasonic processor and sonotrodes mainly complies with the volume of the samples to be sonicated. The offered power range for the laboratory includes devices of 50, 100, 200 and 400 watts and is suitable for small droplets but also for several liters. For bigger volumes we offer industrial processors with a power range of up to 16kW per unit.

The operation of our ultrasonic processors is most simple. The amplitude and therewith the power can be adjusted from 20 to 100%. With an adjustable pulse from 0 up to 1 the operation can be stopped in defined regular intervals, so that problems as regards the heating-up and foaming can be avoided. The automatic determination of the ideal frequency makes a manual precision adjustment unnecessary. Independent of the sonotrode’s load, the adjusted amplitude remains constant. That creates reproducible conditions and also high robustness as the devices are then steady-state proof even when operated in air.

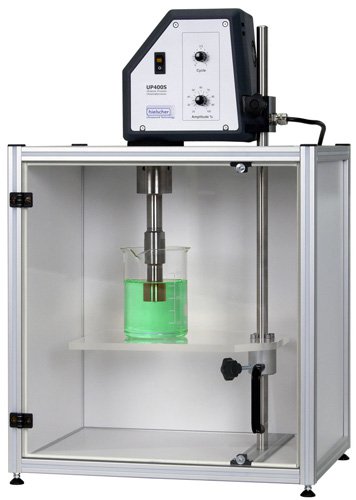

The well-priced standard devices can be retrofitted with suitable accessories at any time. Diverse sonotrodes, flow cells, sound protection boxes and a timer are part of the standard program. By means of a PC-control the given test parameters can be displayed and the test results, in particular the resulting power and energy input in the liquid as well as the temperature can be recorded.

Should your demands exceed our standard range, please contact us, so that we may design a special solution made to your requirements.
