Phytochemistry and Sonication: High-Efficiency Ultrasonic Extraction of Plant Bioactives

Phytochemistry is the science of plant-derived chemical compounds – from polyphenols, flavonoids and alkaloids to terpenes, saponins, glycosides, pigments, antioxidants and essential oil constituents. These phytochemicals are valuable for nutraceuticals, pharmaceuticals, cosmetics, food ingredients, natural colorants, fragrances, herbal extracts and analytical research.

Upgrade Your Phytochemical Extraction with Hielscher Sonicators

Extract More Bioactives in Less Time
Hielscher probe-type sonicators intensify botanical extraction by breaking open plant cells and accelerating mass transfer. This enables high-yield extraction of phytochemicals from herbs, roots, leaves, flowers, fruits, seeds, bark, algae and other plant materials.


Why Choose Hielscher Ultrasonic Extraction Systems

• Higher extraction yields: Recover more target compounds from the same botanical raw material.
• Shorter processing times: Replace long maceration or heat-intensive extraction steps with fast ultrasonic processing.
• Mild, non-thermal extraction: Preserve heat-sensitive phytochemicals such as polyphenols, terpenes, anthocyanins, vitamins and antioxidants.
• Solvent flexibility: Use water, ethanol, hydroethanolic mixtures, glycerin, oils, deep eutectic solvents or other suitable extraction media.
• Precise process control: Adjust amplitude, power, energy input, time, temperature, pressure and flow rate.
• Linear scale-up: Develop extraction parameters in the lab and transfer them to pilot and industrial production.
• Batch and inline operation: Choose beaker-scale sonication, stirred tank processing or continuous flow-through extraction.
• Robust industrial design: Hielscher ultrasonicators are engineered for demanding production environments, reproducible operation and easy integration.

Ultrasonic Processing for Faster, Cleaner and More Complete Phytochemical Extraction

To use phytochemicals in formulations, assays or commercial products, they must first be released from the plant matrix. This is where sonication has become one of the most effective extraction technologies. Probe-type ultrasonicators generate intense acoustic cavitation in liquids and slurries. The resulting microturbulence, shear forces and pressure fluctuations disrupt plant cells, improve solvent penetration and accelerate the transfer of bioactive molecules into the extraction medium.

Hielscher Ultrasonics supplies high-performance ultrasonicators for phytochemical extraction from laboratory research to full industrial production. Whether you are developing a botanical extract, optimizing analytical sample preparation or scaling a plant-based ingredient process, sonication gives you precise control over extraction intensity, reproducibility and throughput.

What Is Sonication in Phytochemistry?

Sonication is the application of high-power ultrasound to a liquid or slurry. In phytochemistry, sonication is most commonly used for ultrasound-assisted extraction, sample preparation, cell disruption, dispersion, emulsification and process intensification.
When a high-intensity ultrasonic probe transmits sound waves into an extraction medium, alternating high-pressure and low-pressure cycles create acoustic cavitation. Cavitation bubbles grow and collapse violently. This collapse produces localized shear forces, liquid microjets and intense mixing effects.

In botanical extraction, these effects help to:

• rupture cell walls and membranes
• increase solvent access to intracellular compounds
• reduce boundary layers around plant particles
• improve diffusion of phytochemicals into the solvent
• shorten extraction time
• increase reproducibility
• reduce the need for excessive heat or prolonged solvent exposure

The result is a faster, more efficient and often gentler extraction process compared with conventional maceration, infusion, percolation or reflux methods.

Why Sonication Is Important for Modern Phytochemical Extraction

Botanical raw materials are complex. Bioactive compounds are enclosed in plant cells, bound to structural components or distributed across different tissues. Conventional extraction often requires long residence times, high solvent volumes or elevated temperatures. These conditions can be inefficient and may degrade thermolabile compounds.
Ultrasound-assisted extraction addresses these limitations by intensifying the physical release of phytochemicals. Instead of relying only on passive diffusion, sonication actively disrupts the plant matrix and drives mass transfer.

This makes ultrasonic extraction especially useful when processors need:

• higher yield from expensive botanicals
• shorter production cycles
• lower solvent consumption
• improved extraction of heat-sensitive compounds
• reproducible extraction for quality control
• scalable processing from laboratory to production
• compatibility with green solvents and clean-label ingredients

For phytochemical research, sonication also improves analytical sample preparation. Laboratories can extract target compounds quickly and consistently before HPLC, GC-MS, LC-MS, UV-Vis, antioxidant assays or other analytical methods.

Batch and Inline Sonication for Botanical Extracts

Batch Ultrasonic Extraction

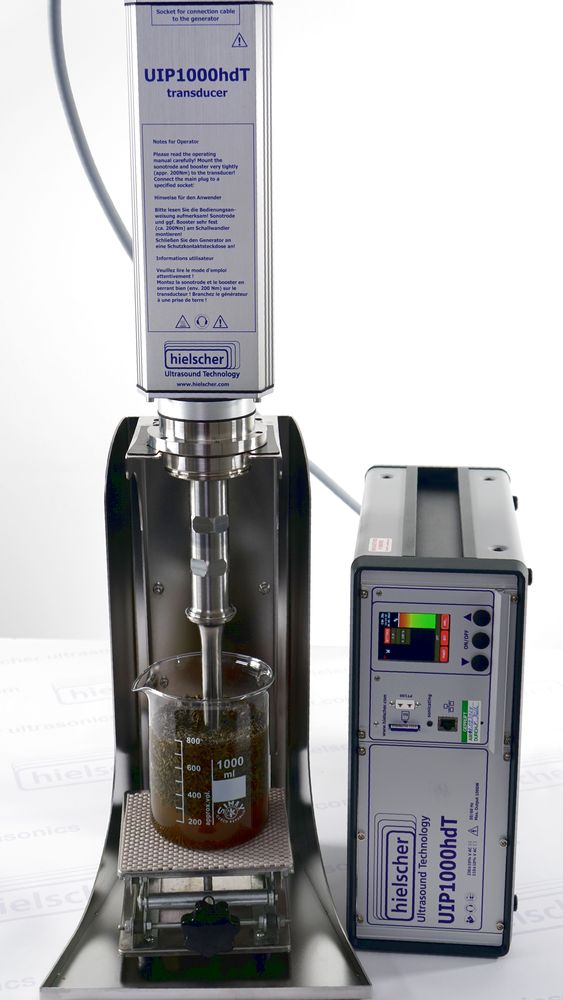

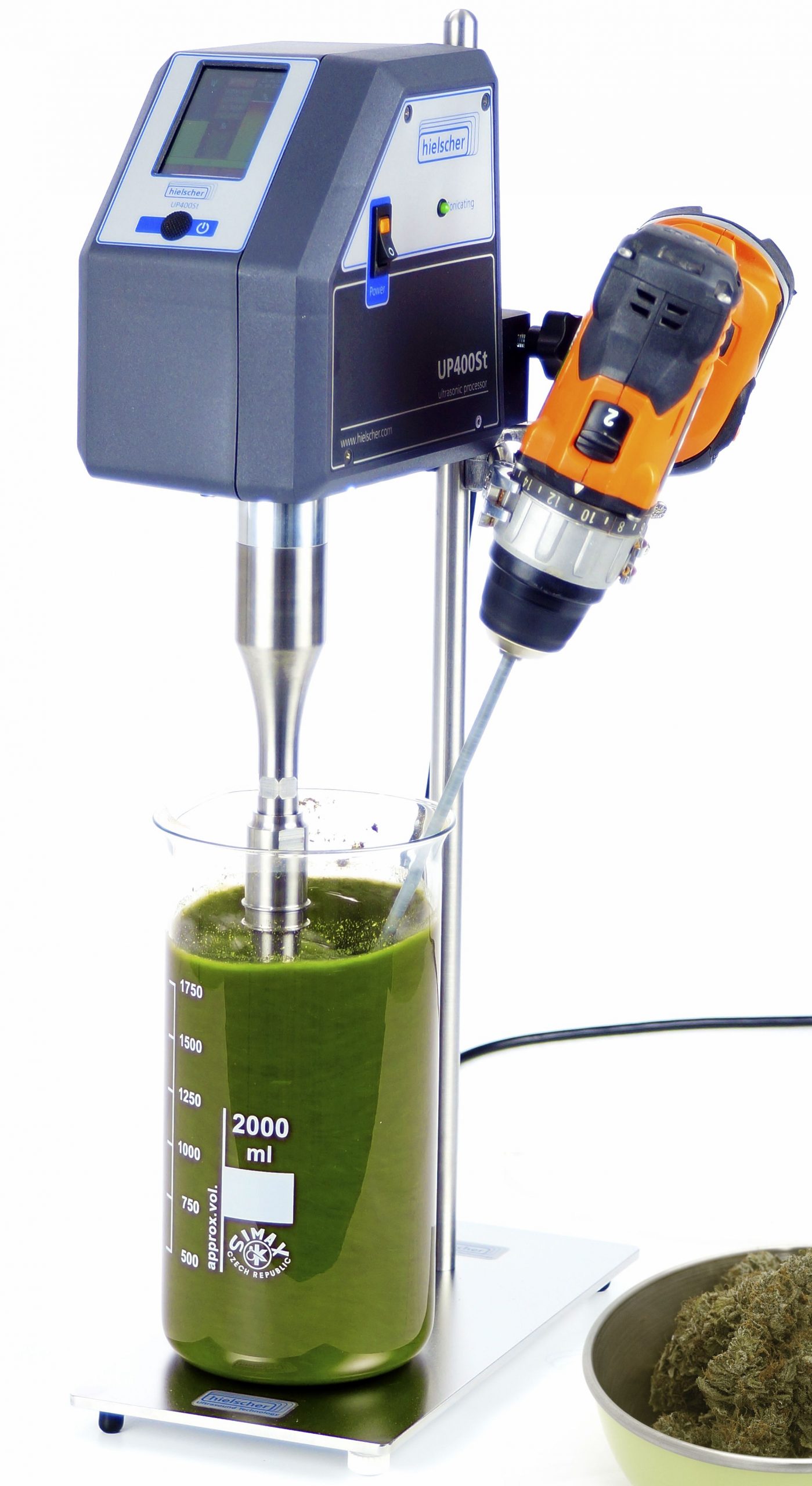

Batch sonication is ideal for laboratory research, formulation development, small-scale production and flexible processing. A probe sonicator is inserted into a vessel containing the plant-solvent slurry. Batch processing is easy to set up and excellent for screening parameters such as solvent type, amplitude, extraction time and temperature.

Continuous Inline Ultrasonic Extraction

For larger production volumes, continuous inline sonication is the preferred setup. The botanical slurry is pumped through an ultrasonic flow cell where it is exposed to controlled cavitation. Inline processing improves reproducibility, process control and throughput. It also makes scale-up more predictable because energy input, residence time and flow rate can be defined precisely.
Hielscher industrial ultrasonicators are designed for continuous operation and can be integrated with pumps, heat exchangers, holding tanks, filtration systems, solvent recovery and downstream concentration.

The table below gives you an indication of the approximate processing capacity of our sonicators for botanical extraction

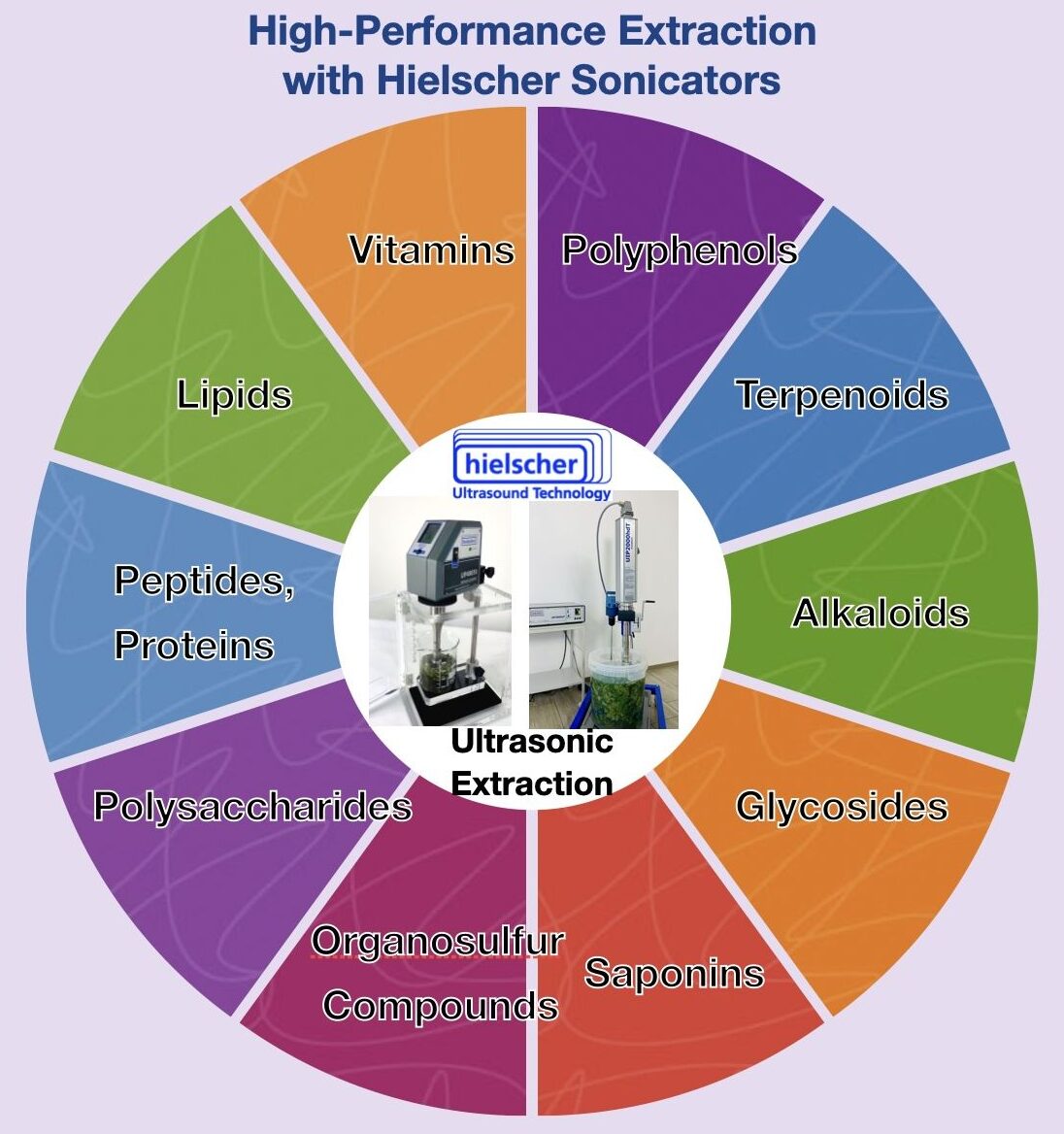

Phytochemicals Extracted by Sonication

Sonication is suitable for a wide range of phytochemical classes. The extraction result depends on plant material, particle size, solvent, temperature, ultrasonic amplitude, residence time and downstream separation.

Polyphenols and Flavonoids

Polyphenols and flavonoids are among the most studied phytochemicals because of their antioxidant properties and relevance in food, nutraceutical and cosmetic formulations. Ultrasonic extraction enhances the release of phenolic acids, catechins, quercetin, rutin, anthocyanins and related compounds from leaves, fruits, peels, flowers, seeds and bark.

Terpenes and Essential Oil Constituents

Terpenes and aroma compounds are important for herbal extracts, fragrances, flavors and cannabis or hemp processing. Sonication can improve extraction from plant tissues while allowing mild temperature control, which is important for volatile and oxidation-sensitive compounds.

Alkaloids

Alkaloids occur in many medicinal plants and are often extracted for analytical, pharmaceutical or nutraceutical purposes. Ultrasonic treatment improves matrix disruption and can accelerate alkaloid transfer into suitable solvents.

Saponins, Glycosides and Tannins

Many roots, herbs, legumes and medicinal plants contain saponins, glycosides and tannins. Sonication helps release these compounds from fibrous or dense plant matrices and can be optimized to balance extraction yield with selectivity.

Pigments and Antioxidants

Natural pigments such as anthocyanins, chlorophylls, carotenoids and betalains are valuable for food, beverage, cosmetic and analytical applications. Since many pigments are sensitive to heat, oxygen and pH, ultrasonic extraction under controlled temperature conditions is highly advantageous.

Cannabinoids and Hemp Phytochemicals

Hemp and cannabis contain cannabinoids, terpenes, flavonoids and other plant constituents. Ultrasonic extraction improves the release of these compounds from milled biomass and can be adapted to ethanol, hydroethanolic or other solvent systems.

Ultrasonic extraction of phytochemicals
