Ultrasonic Polyphenol Extraction from Olive Oil By-Products: A Success Story

Olive pomace is no longer just an agro-industrial byproduct – it is a valuable source of high-performance natural antioxidants. In this study, Natural Phenolics optimized the aqueous extraction of hydroxytyrosol-rich polyphenols using the Hielscher sonicator UP400St. The results demonstrate a robust, reproducible, and scalable process, achieving a predicted hydroxytyrosol concentration of 1609.5 mg/L under optimized sonication conditions. This work highlights how precision ultrasound technology can turn olive oil waste into premium bio-based raw materials for food, agriculture, and sustainable industry.

Olive Pomace – Not By-Byproduct, but a Resource Rich in Antioxidants

Olive pomace (alperujo) is the main byproduct of olive oil extraction; its annual worldwide production reaches between 13 and 18 million tons. Polyphenols are secondary metabolites present at high concentrations in this agro-industrial residue. While these compounds show outstanding antioxidant activity, their untreated presence in the environment poses a significant toxicological challenge. As a pioneering force in waste valorization, Natural Phenolics steps in to address this issue, transforming this environmental liability into a sustainable economic asset. By extracting these high-value metabolites, of the Spanish company Natural Phenolics manufactures premium bio-based raw materials. Currently, the R&D of Natural Phenolics is at the forefront of producing advanced plant biostimulants and clean-label antioxidant food preservatives.

Natural Phenolics, a company based in Catalunia, Spain, produces high-quality biostimulants from agricultural by-products

The Need for Efficient and Standardized Extraction Technologies

Against this background, choosing the right extraction technology is crucial to the obtention of standardized extracts. Ultrasound-assisted extraction (UAE) has emerged as a powerful technique that delivers reproducible results, reduces extraction times, and lowers solvent consumption, among other operational advantages.

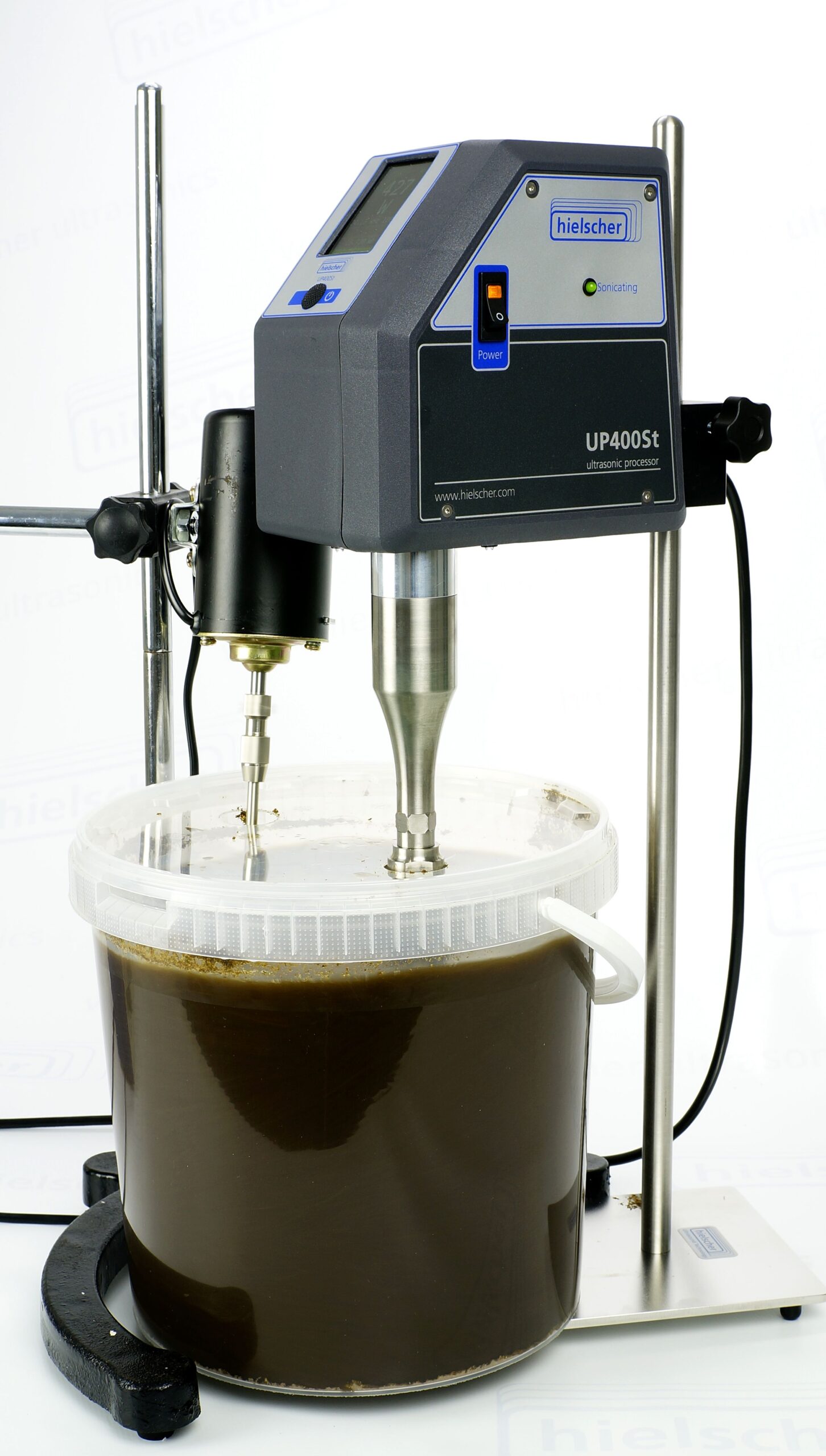

Here, Natural Phenolics presents the optimization results for obtaining standardized aqueous extracts rich in hydroxytyrosol (HT) and other polyphenols. A central composite design was chosen as the experimental model. The evaluated parameters were extraction amplitude and time while the response was measured in terms of hydroxytyrosol concentration. For this purpose, they utilized the Hielscher Ultrasonics sonicator UP400St, selected for its user-friendly operation and high precision in amplitude control.

Experimental Design of Ultrasonic Extraction: Optimizing Amplitude and Extraction Time

This precise control was fundamental to deconvolve the acoustic energy effects from raw material variability. All extractions were carried out using dried olive pomace (20% moisture content, 1 mm particle size) and water as the solvent. The slurry was prepared at a 40% solid-to-liquid ratio, and all experiments were conducted at a constant temperature of 35°C. Table 1 summarizes the experimental conditions evaluated through the 12-run CCD matrix.

Table 2 show the model quality assessments for the optimization. The mathematical model explained 72.02% of the total variability (R2 = 0.7202), which represents a highly satisfactory fit considering the complex and inherently heterogeneous nature of the olive pomace matrix. Although the model significance (P = 0.101) sits slightly above the traditional 95% confidence threshold due to the tightly constrained degrees of freedom in the 12-run matrix, the strong negative quadratic coefficients b11 = -61.61 and b22 = -71.61 confirm a physically sound parabolic extraction kinetic.

Ultrasonic polyphenol extraction from olive pomace: left – Response Surface model of the method; right – Contour plot

Robust Hydroxytyrosol Recovery with Ultrasonic Extraction

Figure 1A illustrates the response surface plot of the optimized model. The broad red zone at the plateau maximum confirms the process robustness, since variations in amplitude within the 50– 60% range do not induce major fluctuations in hydroxytyrosol concentration. When analyzing individual factor effects, increasing the amplitude from 22% to 50% exerts a critical impact, driving a sharp improvement in extraction yield. Conversely, extraction times exceeding 20 minutes stabilize the yield, suggesting solvent saturation at this stage. Ultimately, this architecture successfully identified a definitive operational optimum at 61.5% amplitude and 24.2 minutes of sonication, yielding a maximum predicted hydroxytyrosol concentration of 1609.5 mg/L.

In conclusion, the utilization of Hielscher Ultrasonics technology was a cornerstone in achieving a highly reproducible and energetically optimized process for hydroxytyrosol extraction. The outstanding precision in amplitude control and the robust mechanical performance of the UP400St sonotrode guarantee that these laboratory-scale milestones can be seamlessly translated into continuous-flow industrial systems. Furthermore, the success of this optimization phase was significantly accelerated by the exceptional technical assistance and local support provided by Jover Labtech, Hielscher’s representatives in Catalonia, Spain. This synergy between cutting-edge acoustic hardware and expert proximate engineering support establishes a definitive, viable path toward the sustainable, full-scale commercial valorization of agro-industrial biomass.
