Sono-Ozonation: Synergies of Sonochemistry and Ozonation for Advanced Oxidation

Sono-Ozonation is an advanced oxidation process that combines ultrasound with ozonation in a single treatment system. While both technologies are effective on their own, their simultaneous application often produces a stronger effect than either method alone. This synergy is particularly valuable in environmental applications, where persistent organic pollutants, microorganisms, colorants, pharmaceuticals, pesticides, industrial chemicals, and other contaminants must be degraded efficiently. By integrating acoustic cavitation with ozone chemistry, sono-ozonation enhances radical generation, improves mass transfer, and accelerates oxidative reactions in liquid media.

How Does Sonication Improve Ozonation?

The principle of sono-ozonation is based on the interaction between ultrasonic cavitation and ozone decomposition. When high-intensity ultrasound is introduced into a liquid, alternating compression and rarefaction cycles generate microscopic cavitation bubbles. These bubbles grow and violently collapse, producing localized hot spots with extremely high temperatures and pressures for very short periods of time. Under these extreme conditions, water molecules can dissociate into highly reactive hydroxyl radicals. These radicals are among the most powerful non-selective oxidants in aqueous systems and are able to attack a broad range of organic compounds.

The Advantages of Ultrasonically-Assisted Ozonation

Ozone is also a strong oxidizing agent and is widely used for water and wastewater treatment. It can react directly with certain contaminants or decompose in water to form secondary oxidants such as hydroxyl radicals. However, ozonation can be limited by gas-liquid mass transfer, ozone solubility, and the selectivity of direct ozone reactions. Ultrasound helps overcome these limitations. Cavitation improves the dispersion of ozone gas in the liquid, reduces bubble size, renews the gas-liquid interface, and promotes turbulent micro-mixing. As a result, ozone dissolves more effectively and decomposes more readily into reactive radical species.

The combined effect is a more efficient oxidative environment. In sono-ozonation, ozone molecules may enter cavitation bubbles or concentrate near bubble interfaces, where they are exposed to intense thermal and mechanical conditions during collapse. This accelerates ozone decomposition and increases the formation of hydroxyl radicals and other reactive oxygen species. The process therefore improves the degradation rate of organic pollutants and can reduce treatment time compared with conventional ozonation. In many applications, sono-ozonation also improves mineralization, meaning that organic molecules are not only transformed into intermediate compounds but are further oxidized toward carbon dioxide, water, and inorganic ions.

One of the most important advantages of sono-ozonation is its ability to treat compounds that are resistant to conventional oxidation. Many environmental contaminants, including dyes, phenolic compounds, endocrine-disrupting chemicals, pharmaceutical residues, and surfactants, can be difficult to remove completely. Ozone may react selectively with electron-rich groups, while ultrasound-induced radicals can attack less selective molecular sites. The combination expands the range of oxidation pathways and improves the probability of contaminant breakdown. This makes sono-ozonation attractive for wastewater treatment, drinking water polishing, leachate treatment, process water recycling, and remediation of contaminated aqueous streams.

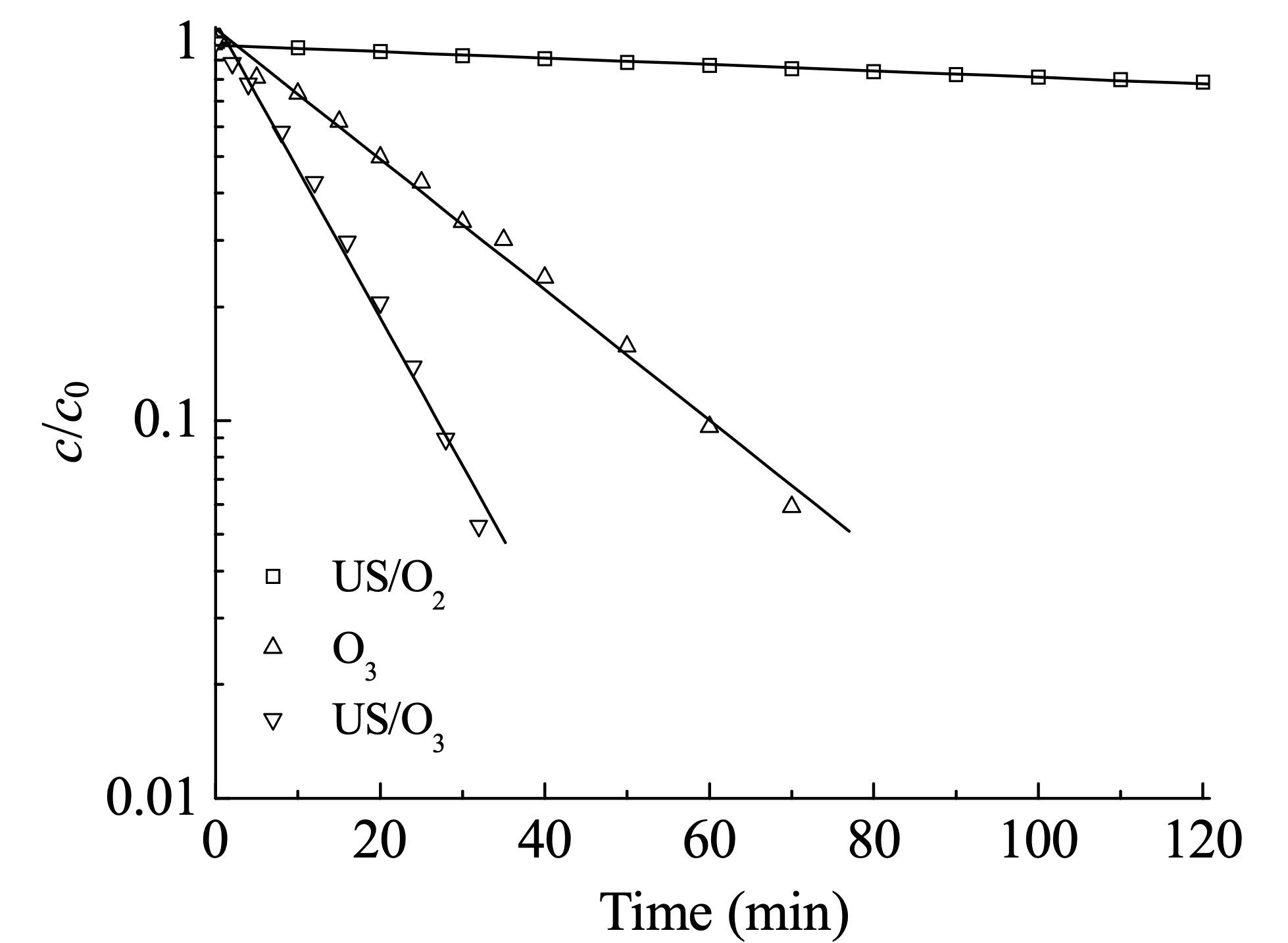

First-order degradation of p-nitrophenol due to sonication with O2, ozonation and sonolytic ozonation. The O3 gas flow at 40 ml/min, pH=3, T=298 K. The initial p-nitrophenol concentration was 50 mg/L. The ultrasonic power generation of transducer was 125 W.
Graphic and study: ©Xu et al., 2005

Applications of Sono-Ozonation

Sono-Ozonation is highly relevant for microbial inactivation. Ultrasound can physically disrupt microbial cells through shear forces, microjets, shock waves, and localized pressure changes. Ozone, meanwhile, oxidizes cell walls, membranes, enzymes, and genetic material. When both methods are applied together, the antimicrobial effect can be enhanced. Cavitation may weaken or damage cell structures, allowing ozone and radical species to attack more effectively. This combined action can improve disinfection performance against bacteria, fungi, algae, and other microorganisms. For applications where microbial control and organic contaminant degradation are both required, sono-ozonation offers a powerful multifunctional treatment approach.

Beyond chemical degradation and antimicrobial activity, sono-ozonation can improve physicochemical properties of treated liquids. Ultrasonic cavitation increases mixing intensity, promotes degassing and gas dispersion, and enhances the contact between oxidants and contaminants. These effects can support reductions in color, odor, chemical oxygen demand, turbidity, and certain refractory organic fractions. In some processes, sono-ozonation can also improve downstream treatment by converting persistent substances into more biodegradable compounds, thereby increasing the efficiency of biological treatment steps.

Closed Reactors for Efficient Processing and Easy Scale-up

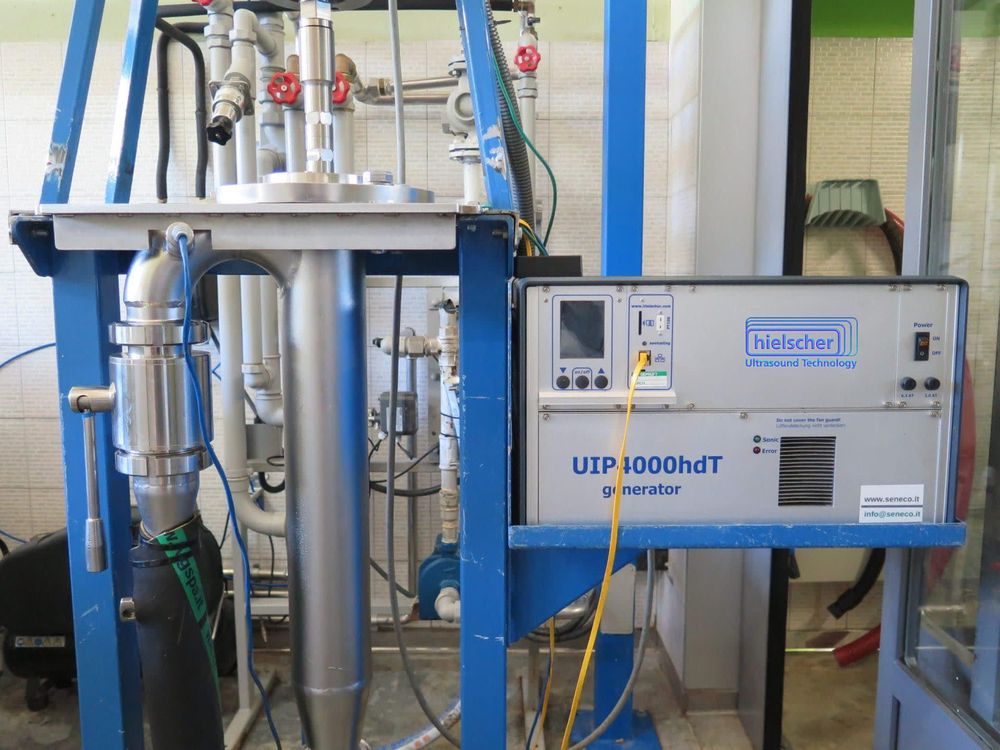

A practical advantage of sono-ozonation is that it can be implemented in closed reactor systems. Hielscher probe-type sonicators are particularly suitable for this type of integration because they deliver high-intensity ultrasound directly into the liquid through a titanium sonotrode. The probe can be mounted into a closed vessel or flow-through reactor using appropriate ports, flanges, or fittings. At the same time, ozone can be introduced through a gas inlet, diffuser, sparger, or recirculation loop. This allows ultrasound and ozone to act simultaneously within the same reaction volume.

Such a setup is straightforward and scalable. The closed reactor contains the liquid to be treated, while the ultrasonic probe transfers acoustic energy directly into the medium. Ozone flows continuously or intermittently through the reactor, depending on the process requirements. The ultrasound improves ozone dispersion and contact with the liquid phase, while the closed configuration helps contain ozone safely and enables controlled off-gas handling. Excess ozone can be directed to an ozone destructor or suitable exhaust treatment system. Important operating parameters include ultrasonic amplitude, power input, treatment time, ozone concentration, gas flow rate, temperature, pressure, pH, and reactor geometry.

Hielscher Sonicators for Ozonation and Advanced Oxidation

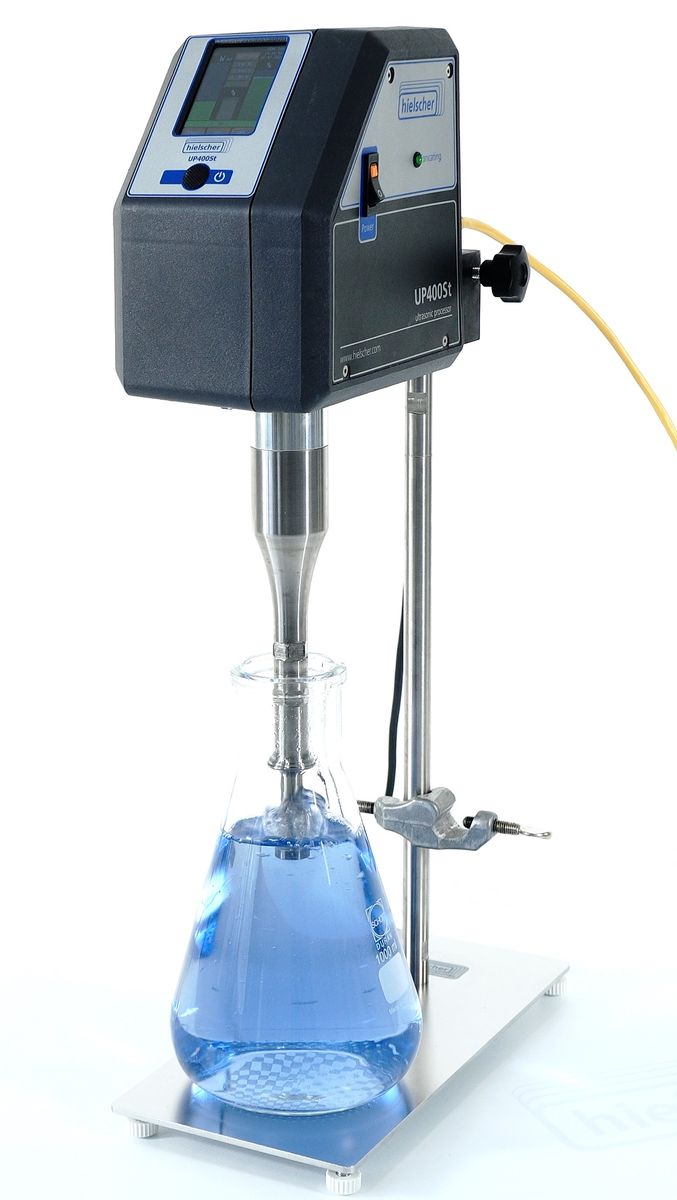

Hielscher probe-type sonicators can be used for batch or continuous sono-ozonation processes. In laboratory development, compact ultrasonicators allow researchers to evaluate reaction kinetics, pollutant degradation, and microbial reduction under controlled conditions. For pilot and industrial operation, more powerful ultrasonic systems can be integrated into larger tanks or continuous flow reactors. Because probe sonication introduces energy efficiently into the liquid, it is well suited for process intensification where strong cavitation and reliable reproducibility are required.

Sono-Ozonation represents a highly effective synergistic method that combines the chemical oxidation power of ozone with the physical and sonochemical effects of ultrasound. The process increases radical formation, improves gas-liquid mass transfer, accelerates contaminant degradation, and enhances antimicrobial activity. Its compatibility with closed reactors and direct integration of Hielscher probe-type sonicators makes sono-ozonation a practical and versatile approach for environmental treatment, water purification, wastewater remediation, and advanced oxidation applications.

The table below gives you an indication of the approximate processing capacity of our ultrasonicators:

Design, Manufacturing and Consulting – Quality Made in Germany

Hielscher ultrasonicators are well-known for their highest quality and design standards. Robustness and easy operation allow the smooth integration of our ultrasonicators into industrial facilities. Rough conditions and demanding environments are easily handled by Hielscher ultrasonicators.

Hielscher Ultrasonics is an ISO certified company and put special emphasis on high-performance ultrasonicators featuring state-of-the-art technology and user-friendliness. Of course, Hielscher ultrasonicators are CE compliant and meet the requirements of UL, CSA and RoHs.

Literature / References
