UP50H - Compact Lab Homogenizer

The ultrasonic processor UP50H is typically used for the sonication of small lab samples. This homogenizer allows for the handheld or stand-mounted emulsification, dispersing, dissolving or cell disruption.

(Click for larger view!) The UP100H is a compact yet powerful ultrasonic device for handheld and stand-mounted operation.The ultrasonic processor UP50H (50 watts, 30kHz) is the smallest model of our aesthetic laboratory devices, that are only supplied by Hielscher Ultrasonics in that compact form. The UP50H is used in particular in medical, biological or chemical laboratories, where small volumes need to be sonicated. Application fields are found mainly in the analytical field with applications such as the disruption of tissues, the cracking of bacteria or the homogenizing of samples in the food industry. This device is perfectly suited for handheld operation with its lightweight 1.1kg, but it can also be operated at a stand. Generator and the transducer are combined in one unit, so there is only one cable. One power supply cord - that's all. For volume samples from 10µL up to 250mL we offer various replaceable sonotrodes with diameters from 0.5 to 7mm. Further accessories such as flow cells made of stainless steel or glass, timers or our PC-control are part of our standard program. Click at the links below, to read more about the applications of our ultrasonic devices.

The UP50H can be used in combination with a flow cell D7K for the sonication of material in continuous flow, e.g. at 10 to 50mL/min. By this, you can simulate continuous sonication processes in smallest scale. For samples larger than 250mL we recommend using the UP100H (100 watts), UP200S (200 watts) or the UP400S (400 watts).

Request a Proposal for this Item!

To receive a proposal, please put your contact details into the form below. A typical device configuration is pre-selected. Feel free to revise the selection before clicking the button to request the proposal.

Ultrasonic Processor UP50H

for handheld operation or for stand use, 50 watts, ultrasonic frequency 30kHz, automatic frequency tuning system, amplitude adjustable from 20 to 100%, pulse adjustable from 0 to 100%, dry running protected, with 9-pin DSUB interface, in portable case, with stand holder for use with stand ST1-16 or sound protection box SB2-16, with mounting tools, IP40 grade, titanium horn with female thread M6x0.75
dimensions (LxWxH): 185x130x85mm, weight: 1.1kg
115 Volts, AC, single phase, 1A, 50-60Hz
230 Volts, AC, single phase, 0.63A, 50-60Hz
(Click for larger view!) UP50H ultrasonic lab homogenizer for handheld and/or standmounted operation

Sonotrode MS1

made of titanium, tip diameter 1mm, approx. length 80mm, male thread M6x0.75, for samples from 0.1ml up to 5ml



Sonotrode MS2

made of titanium, tip diameter 2mm, approx. length 80mm, male thread M6x0.75, for samples from 2ml up to 50ml



Sonotrode MS3

made of titanium, tip diameter 3mm, approx. length 80mm, male thread M6x0.75, for samples from 5ml up to 100ml



Sonotrode MS7

made of titanium, tip diameter 7mm, approx. length 80mm, male thread M6x0.75, for samples from 10ml up to 250ml



Sonotrode MS7D

made of titanium, tip diameter 7mm, approx. length 80mm, male thread M6x0.75, with seal for closed systems



Sonotrode MS7L2D

made of titanium, tip diameter 7mm, approx. length 160mm, male thread M6x0.75, with seal for closed systems



Stand ST1-16

diameter 16mm, made of stainless steel, base length 300mm, width 150mm, height 600mm

ST1-Clamp

clamp for holding diam. 0 to 63mm, made of aluminum, for use with stand stands of up to 16.5mm, e.g. ST1-16

LabLift

for the easy positioning of samples under the ultrasonic probes to control immersion depth, stainless steel, footprint 100x100mm, adjustable height: 50 to 125mm

Timer T1

from 00:00 to 99:59 (min:sec)

Flow Cell D7K

made of stainless steel, with cooling, hose connectors, for fluids, autoclavable, for operation with sonotrode MS7D, volume approx. 13ml, with stand-adapter for stand ST1-16 (diameter 16mm)



Flow Cell GD7K

made of glass, with cooling, hose connectors, for fluids, autoclavable, for operation with sonotrode MS7D (or with sonotrode MS7L2D in combination with flask adapter NSA1), volume approx. 80ml, with clamp for installation at stand, e.g. stand ST1-16 (diameter 16mm)



Flask Adapter NSA1

for standard flask-neck, vertically adjustable, suitable for sonotrode MS7L2D in combination with flow cell GD7K



Sound Protection Box SB2-16

with vertically adjustable table and diameter 16mm stand bar, for use with devices UP50H or UP100H

Power Meter PowMet115

versatile, for display of current power, cumulated energy and cumulated operation time, 115V~1P, 50-60Hz

Power Meter PowMet230

versatile, for display of current power, cumulated energy and cumulated operation time, 230V~1P, 50-60Hz

PC-Interface Box UPC-L

PC-control (lab version) with power recording, consisting of interface box (aluminum, 105x80x30), connection cable leading to the 9-pin DSUB socket (RS232) at the PC, software for Windows95/98/NT/XP®

PC-Interface Box UPCT-L

PC-control (lab version) with power and temperature recording (including temperature probe), consisting of interface box (aluminum, 105x80x30), connection cable leading to the 9-pin DSUB socket (RS232) at the PC, software for Windows95/98/NT/XP®

(Click for larger view!) The ultrasonic device UP50H is a uniquely compact and powerful device for lab applications, such as homogenizing, dispersing, emulsifying and deagglomerating.

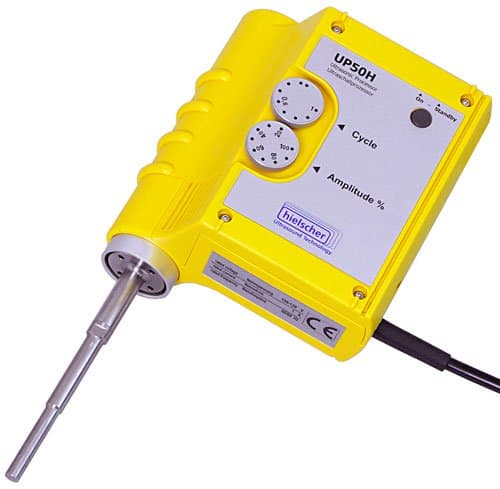

UP50H with MS7

Quick Link
Information Request

(Click for larger view!) The compact and powerful ultrasonic disintegrator UP50H can be used at a stand or in handheld operation.
