UPcontrol V2.3 WIN – PC-Interface
As an option, our ultrasonic processors can be equipped or retrofitted with an UPcontrol package. This PC-control gives automation of the ultrasonic process parameters, such as amplitude, pulse/cycle, operating time or alternatively the actual energy input. It serves for the monitoring and recording of those parameters, too. You can display the following features in a time based table or diagram.
- gross ultrasonic power,
- effective ultrasonic power, that is transmitted into the liquid medium,
- effective energy input, and
- temperature (optional).
The PC-control is connected to a laptop or a PC (MS Windows®) using the serial or USB interface. The PC-control serves as an efficient support in optimizing processes and in creating a compulsory test record.
Below, you find the appropriate PC-card for each ultrasonic device.

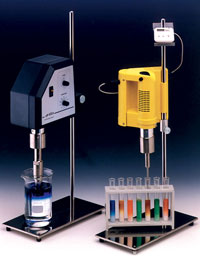

|laboratory device UP50H – UP400S||UPC-Lab||UPCT-Lab|
|industry device UIP500hd – UIP16000||UPC-I||UPCT-I|
In addition to the standard PC-control Hielscher Ultrasonics offers, an interface which allows for communication of the ultrasonic system with a central PLC for industrial applications.
