Kamillesextraktioun – Héichere Ernte, besser Qualitéit mat Sonikatioun

Produzéiert héichwäerteg Kamillesextrakter méi séier, méi effizient a mat reproduzéierbarer Potenz. Hielscher ultrasonic extractors intensify the extraction of chamomile bioactives such as apigenin, flavonoids, phenolic compounds, polysaccharides and essential oil constituents. Whether you manufacture herbal teas, functional beverages, tinctures, dietary supplements, cosmetic actives or botanical ingredients, sonication helps you achieve higher yields, shorter extraction times and consistent extract quality.

Ultrasonic Chamomile Extraction for Food, Supplements and Cosmetics

Using high-intensity ultrasound, Hielscher sonicators create acoustic cavitation in the solvent–plant slurry. This disrupts chamomile flower tissue, improves solvent penetration and accelerates mass transfer. The result is a mild, non-thermal extraction process that can be precisely controlled and scaled from laboratory testing to continuous industrial production.

• Higher extract yield: Efficient release of flavonoids, phenolics, aroma compounds and other chamomile actives.
• Shorter processing time: Replace long maceration with fast ultrasonic extraction.
• Food-, supplement- and cosmetic-grade solvents: Water, ethanol, aqueous ethanol, glycerine, oils and other suitable solvents.
• Excellent process control: Adjustable amplitude, temperature, pressure, energy input, flow rate and residence time.
• Reliable scale-up: From small R&D batches to pilot trials and industrial inline extraction.

Why Sonication Improves Chamomile Extraction

In conventional botanical extraction, the solvent must slowly diffuse into the plant particles, dissolve the target compounds and diffuse back out into the bulk liquid. This process can take hours or days and often requires elevated temperatures or large solvent volumes. Sonication intensifies every step of this extraction mechanism.
During ultrasonic extraction, cavitation physically disrupts the botanical structure and reduces the diffusion boundary layer around plant particles. The solvent penetrates faster into the chamomile flower material, while dissolved bioactives are transported rapidly into the surrounding liquid. This makes sonication especially valuable for producers who need high extraction efficiency, short batch times and consistent extract quality.

Key advantages of ultrasonic chamomile extraction include:

• Higher extraction yields: More complete release of flavonoids, phenolics, essential oil constituents and other plant actives.
• Shorter processing times: Extraction that may otherwise require long maceration can often be completed much faster.
• Mild, non-thermal processing: Reduced heat exposure helps preserve delicate aroma compounds and temperature-sensitive phytochemicals.
• Lower solvent demand: Improved mass transfer can reduce the required solvent volume or extraction cycles.
• Reproducible quality: Amplitude, energy input, temperature, pressure, flow rate and residence time can be controlled.
• Scalable production: Hielscher sonicators can be used from R&D to pilot testing and continuous inline manufacturing.

As a process-intensifying technology for releasing bioactive compounds from botanicals, ultrasonic extraction is broadly used in food, nutritional supplements and pharmaceutical applications.

Choosing the Right Solvent for Chamomile Extraction

Chamomile contains both polar and non-polar compounds. Therefore, the ideal solvent depends on the target extract profile and final product application. Sonication can be used with water, ethanol, aqueous ethanol, glycerine, vegetable oils and other food- or cosmetic-grade solvents. Ultrasonication is compatible with a wide range of botanical materials and solvents, including water, ethanol, glycerine and vegetable oils.

Aqueous Ethanol: Broad-Spectrum Chamomile Extraction

For many commercial chamomile extracts, aqueous ethanol is the most versatile solvent system. For hydro-ethanolic extracts, a water–ethanol mixture is used to dissolve a broad range of polar and moderately lipophilic chamomile constituents. Water supports the extraction of hydrophilic compounds such as certain phenolic acids, polysaccharides and flavonoid glycosides, while ethanol improves the solubility of less polar compounds, including apigenin aglycone and many aroma-related constituents.
Apigenin is widely recognized as a poorly water-soluble flavonoid, while ethanol–water mixtures are frequently investigated as more suitable food- and pharma-compatible solvent systems for apigenin handling and recovery.
For food, supplement and cosmetic producers, aqueous ethanol offers several advantages:

• Broad phytochemical spectrum
• Food-grade and widely accepted solvent system
• Efficient extraction of flavonoids and phenolics
• Adjustable polarity by changing the ethanol/water ratio
• Easy downstream removal or concentration by evaporation

With sonication, aqueous ethanol becomes even more effective. Ultrasonic cavitation increases solvent penetration into the chamomile particles and accelerates dissolution of target molecules. This allows processors to optimize ethanol concentration, extraction time and temperature for a specific target: a mild chamomile flavor extract, a standardized apigenin-rich extract or a broad-spectrum botanical active for cosmetics.

Water: Clean-Label Chamomile Extracts for Beverages and Foods

Water is the most natural solvent for chamomile extraction and is widely used for teas, infusions, beverages and clean-label food products. Water is especially suitable for extracting hydrophilic components, including certain flavonoid glycosides, phenolic acids, polysaccharides and water-soluble flavor compounds. However, water alone is less efficient for poorly water-soluble compounds such as apigenin aglycone and many lipophilic essential oil constituents.
Sonication significantly improves aqueous chamomile extraction. By breaking up the flower tissue and enhancing mass transfer, ultrasound helps water extract bioactives more rapidly and more completely than simple steeping. This is highly relevant for beverage manufacturers, tea extract producers and clean-label formulators who want to avoid organic solvents while still increasing extract strength and process efficiency.

Ultrasonic water extraction is particularly attractive when the final product is:

• Ready-to-drink chamomile beverage
• Herbal tea concentrate
• Functional water-based extract
• Alcohol-free supplement extract
• Cosmetic hydrosol-style botanical extract

Because sonication is a mechanical, non-thermal process, it can support high-quality aqueous extraction without relying on excessive heat. This helps preserve chamomile’s delicate floral profile and reduces the risk of cooked or degraded sensory notes.

Ethanol: Potent Botanical Extracts and Tinctures

Ethanol is a strong solvent for many chamomile bioactives and is especially useful when the target extract should contain a higher proportion of less polar flavonoids, phenolics and aroma-active constituents. Ethanol is widely used in botanical tinctures, supplement extracts and cosmetic actives because it is effective, food-compatible and easy to remove during concentration.
Pure ethanol is less polar than water and may not extract the full spectrum of hydrophilic chamomile constituents as effectively as aqueous ethanol. Therefore, many producers use ethanol–water blends instead of absolute ethanol. Still, ethanol-rich extraction can be beneficial when the goal is a concentrated extract with higher levels of apigenin aglycone, essential oil components and lipophilic actives.
Sonication enhances ethanol extraction by reducing extraction time and improving the release of compounds trapped within the flower structure. For supplement producers, this means more efficient production of high-strength tinctures, liquid extracts or dried extract intermediates. For cosmetics manufacturers, ethanol-based ultrasonic extraction can generate potent botanical actives for serums, toners, gels and emulsions.

Oil Extraction: Chamomile Actives for Cosmetic and Topical Formulations

Vegetable oils such as olive oil, sunflower oil, jojoba oil or MCT oil are excellent carriers for lipophilic chamomile constituents. Oil extraction is especially relevant for natural cosmetics, skin-care oils, balms, massage oils and topical formulations. Lipophilic compounds such as essential oil constituents, bisabolol-related components and other non-polar aroma fractions are well suited to oil-based extraction.
However, oil is not the preferred solvent when the primary target is apigenin or other polar flavonoid derivatives. Apigenin has poor water solubility but is not typically treated as an oil-soluble botanical marker in the same way as terpenes or essential oil components. For apigenin-focused extracts, aqueous ethanol or ethanol-rich solvents are usually more appropriate.
Sonication makes oil-based chamomile extraction more efficient by dispersing plant particles thoroughly in the oil and increasing contact between the solvent and the botanical surface. This can shorten infusion times, increase extract intensity and improve batch-to-batch reproducibility. For cosmetic producers, ultrasonic oil extraction provides a clean, solvent-free route to chamomile-infused oils without long maceration times.

Apigenin and Chamomile Bioactives: Solubility Matters

A high-quality chamomile extract starts with a clear understanding of compound polarity. Chamomile is not a single-compound raw material; it is a complex botanical matrix. The solvent must be selected according to the desired active profile.
Apigenin and its derivatives are among the most important chamomile flavonoids. Apigenin aglycone is poorly soluble in water, which is why water alone may not maximize apigenin recovery. Ethanol and aqueous ethanol improve extraction performance for less water-soluble flavonoids, while water contributes to the extraction of more polar glycosides and hydrophilic compounds. Scientific literature describes apigenin as a poorly water-soluble bioflavonoid and reports solubility studies in ethanol, water and ethanol–water systems.

For practical chamomile extraction, this means:

• Water is ideal for mild, clean-label, hydrophilic extracts.
• Aqueous ethanol is the best all-round solvent for broad-spectrum chamomile extracts.
• Ethanol is useful for potent tinctures and flavonoid-rich extracts.
• Vegetable oils are ideal for lipophilic cosmetic extracts and topical formulations.

Sonication does not change the fundamental solubility of a molecule, but it dramatically improves the extraction kinetics. Ultrasound helps the solvent reach the target compounds faster and more completely. This is why ultrasonic extraction is so powerful: it combines the chemistry of the right solvent with the physical intensification of acoustic cavitation.

Hielscher Sonicators: From Lab Tests to Industrial Chamomile Extracts

A major advantage of Hielscher ultrasonic technology is linear scalability. Producers can start with small laboratory trials to determine the best solvent, particle size, solid loading, amplitude, temperature and extraction time. Once the optimal extraction parameters are defined, the process can be scaled linearly to pilot and industrial production using larger Hielscher ultrasonic processors and flow-cell reactors.
Hielscher offers sonicators for laboratory, bench-top, pilot and industrial processing. The company’s industrial systems are designed for demanding continuous operation, and Hielscher highlights digital operation, process control, automatic data recording, remote control and robust industrial design for its hdT systems.

For commercial chamomile extraction, this means:

• Straightforward feasibility testing
• Reliable parameter optimization
• Batch or continuous inline processing
• Controlled temperature management
• Reproducible extract quality
• Industrial throughput with robust sonication equipment
• Lower scale-up risk from R&D an d'Produktioun

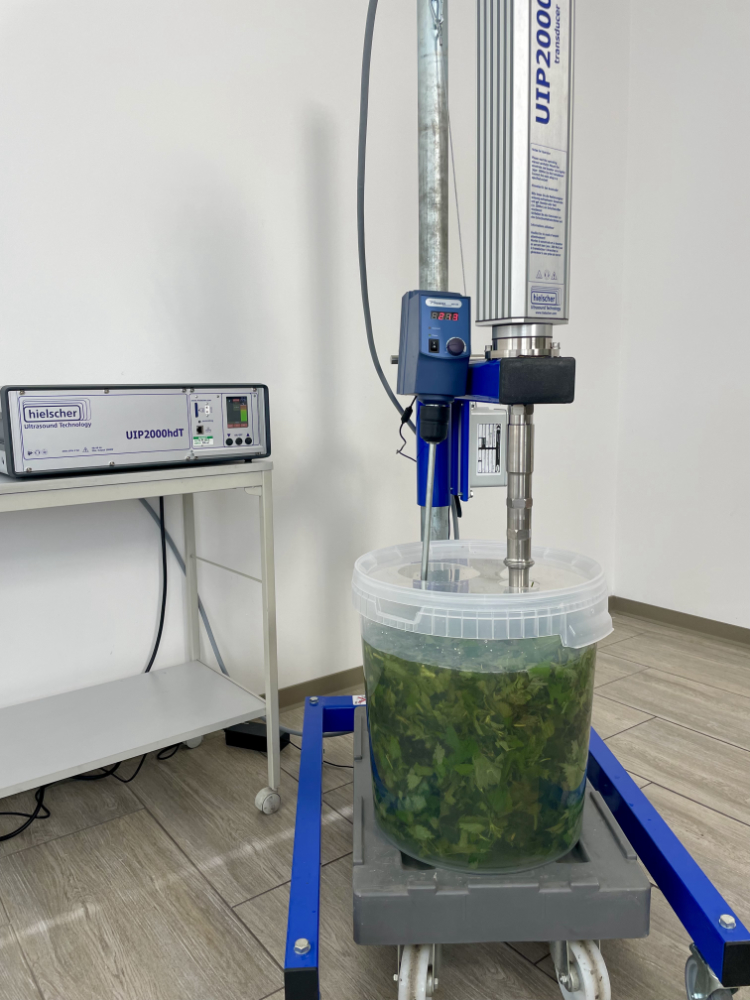

The Hielscher UIP2000hdT, for example, is a 2,000 watts probe-type ultrasonicator for bench-top and industrial liquid processing, with applications including extraction, emulsification, dispersing, homogenization and sonochemical reactions. The Hielscher model UIP16000hdT provides 16,000 watts ultrasonic power for large-volume processing.

Better Chamomile Extracts with Ultrasonic Process Intensification

Chamomile extraction is not only about dissolving plant compounds. It is about producing a consistent, high-value botanical ingredient that meets the requirements of modern food, supplement and cosmetic markets. Sonication gives manufacturers a decisive advantage by combining mild processing with high extraction efficiency.
With the right solvent and the right ultrasonic process parameters, producers can tailor chamomile extracts for specific applications: clean-label water extracts for beverages, broad-spectrum aqueous ethanol extracts for supplements, ethanol-rich tinctures for potent botanicals or oil-based infusions for natural cosmetics. Hielscher sonicators provide the ultrasonic power, process control and scale-up pathway required to turn chamomile into a high-quality commercial extract.
Fir Hiersteller, déi méi héich Rendementer, besser Qualitéit an méi séier Veraarbechtung sichen, ass d'ultrasonesch Kamillenextraktioun mat Hielscher Sonicatoren d'iwwerleeëst Extraktiounstechnologie.

D'Tabell hei drënner gëtt Iech eng Indikatioun vun der geschätzter Veraarbechtungskapazitéit vun eisen Ultraschaller:

Kamillenextraktioun fir Liewensmëttel- a Gedrénksproduzente

Food and beverage producers require extracts that are safe, consistent, flavorful and economically viable. Chamomile extracts are used in herbal teas, functional beverages, syrups, confectionery, dairy alternatives, relaxation drinks and flavor systems. The challenge is to produce an extract with a clean taste, appealing color and reliable active content without excessive heat or long extraction cycles.
Ultrasonic extraction offers a strong processing advantage. Water or aqueous ethanol can be used to produce food-grade chamomile extracts with higher yield and shorter processing times. Since sonication is non-thermal, processors can protect delicate aroma components while avoiding over-extraction of unwanted bitter or harsh notes.
For industrial beverage applications, Hielscher sonicators can be integrated into batch tanks or continuous flow-through systems. This allows producers to process larger volumes with controlled amplitude, residence time and temperature. Hielscher’s scale-up concept supports development at small scale and transfer to larger industrial systems while preserving the same core sonication mechanism.

Chamomile Extraction for Supplement Manufacturers

Supplement producers often focus on potency, standardization and reproducibility. Chamomile extracts may be marketed as liquid extracts, tinctures, powders, capsules, tablets or functional ingredient concentrates. For these applications, process control is critical: the same raw material must produce a consistent extract profile from batch to batch.
Hielscher sonicators give manufacturers direct control over important extraction parameters such as amplitude, energy input, temperature, pressure, solid-to-liquid ratio, flow rate and extraction time. This makes ultrasonic extraction suitable for process optimization and quality-by-design approaches.
For apigenin-rich chamomile extracts, aqueous ethanol is often a preferred solvent because it balances polarity and food-grade acceptability. Sonication helps maximize release of flavonoids and other bioactives while minimizing processing time. The result is a more efficient extraction process with improved yield and a clear route from laboratory trials to commercial production.

Chamomile Extraction for Cosmetic Producers

Chamomile is a popular cosmetic ingredient for skin-soothing, botanical positioning and natural formulation concepts. Chamomile extracts are used in creams, lotions, serums, shampoos, conditioners, after-sun products, baby care products, cleansing products and massage oils.
Cosmetic producers benefit from the solvent flexibility of sonication. Depending on the formulation, chamomile can be extracted into aqueous ethanol, water, glycerine, propylene glycol or oils. Oil-based ultrasonic chamomile extraction is particularly attractive for anhydrous balms, facial oils and natural skin-care formulations, while hydroalcoholic extracts are useful for gels, toners and emulsions.
Sonication also supports cosmetic production beyond extraction. Hielscher ultrasonic processors are used for emulsification, homogenization and dispersion, which means the same ultrasonic platform can support multiple liquid-processing steps in cosmetic manufacturing. Internal Hielscher material highlights cosmetics among the industries served by ultrasonic liquid processing and identifies emulsions, actives and homogenization as relevant application fields.
