UIP4000hdT – 4kW korkean suorituskyvyn ultraääni

The UIP4000hdT delivers up to 4kW ultrasound power and is a reliable production machine even under demanding conditions. It is designed for industrial processes with a higher energy demand and large volumes. The UIP4000hdT is a robust and powerful ultrasonic processor.

Typical applications of the UIP4000hdT include

UIP4000hdT-virtauskenno inline-sonikaatioon teollisessa mittakaavassa

This high-power system is particularly favorable, since no additional cooling media, such as water or compressed air, are necessary. The special design of this system allows for its use under extreme operation conditions, such as dust, dirt, temperature and humidity. The ultrasonic processor consists of titanium and stainless steel. The oscillation-free flange has proven very useful for the integration into machines and plants. It has been adapted to the new technical conditions in terms of correct oscillation-behavior.

The modular concept of the UIP4000hdT provides you with a powerful and yet very space-saving system. The transducer and generator are housed separately from each other and are connected via cables. The self-contained design reduces the work required for installation, operation and maintenance to a minimum level. Multiple UIP4000hdT modules can be easily combined to form clusters with higher process capacities.

4kW Processing Capacity
Prosessi
Virtausnopeus
Biodieselin transesteröinti
1 jotta 3m³/h
Emulgoituminen, e.g. oil/water
0.4 jotta 2m³/hr
solujen uuttaminen, e.g. levät
0.1 jotta 0.8m³/hr
Purkamalla / deagglomeraatio
0.02 jotta 0.4m³/hr
wet milling and grinding
0.01 jotta 0.02m³/hr

In general, the flow cell as well as the ultrasonic transducer are located in a double-walled stainless steel cabinet that comes with a very effective sound insulation. If required, the UIP4000hdT can be used for the sonication of liquids in custom-specific reactors. Of course, the UIP4000hdT is capable to run continuously at full power output (24hrs/7days) like all ultrasonic systems from Hielscher Ultrasonics.

The UIP4000hdT is a full-industrial ultrasonicator for continuous homogenization and extraction.

Hielscher UIP4000hdT4kW high performance ultrasonics for processes in flow-through mode

Tietopyyntö







The UIP4000hdT at a glance

  • 4000 watts powerful ultrasonicator
  • reliable for heavy duty sonication processes
  • 24/7 toiminta
  • Teollinen luokka
  • värillinen kosketusnäyttö
  • Selaa kaukosäädintä
  • automatic data recording of power, amplitude, sonication time, temperature, pressure
  • integroitu SD/USB-yhdistelmäkortti
  • pluggable temperature sensor
  • pluggable pressure sensor (optional available)
  • Lähiverkkoyhteys
  • Ethernet-yhteys
  • Ei ohjelmiston asennusta
  • automaattinen taajuuden viritys

Täysvärinen kosketusnäyttö

Colored touch display of the new hdT series of Hielscher's industrial ultrasonicatorsA great enhancement from the operational view is the colored touch-screen. This touch- and stylus-sensitive screen allows for easy handling, whilst the accurate setting of operating parameters and the display of the ultrasound power setting are guaranteed and combined with highest comfort for the operator. The digital control menu is intuitive to use as reduced to the main settings. The amplitude/ power setting and the pulse mode can be adjusted by a colored touch-slider (with 1%, 5% or 10% snap). The user decides, if he prefers the display of amplitude and power as colored bar graphs or numerical representation. The display can be changed from regular view mode to BIG NUMBER display mode, characterized by heavy contrast and big font-size for improved visibility.

selaimen kaukosäädin

Precise control of the ultrasonic treatment (Click to enlarge!)

The UIP4000hdT can be controlled using any common browser, such as Internet Explorer, Safari, Firefox, Mozilla, mobile IE/Safari using the new LAN web interface. The LAN connection is a very simple plug-n-play setup and requires no software installation. The ultrasonic device acts as DHCP server/client and requests or assigns an IP automatically. The device can be operated directly from the PC/MAC or using a switch or router. Using an optional pre-configured wireless router, the device can be controlled from most smartphones or tablet computers, e.g. the Apple iPad. Using the port-forwarding of a connected router, you could control your UIP4000hdT via internet from any place in the world – älypuhelimesi tai tablettisi on kaukosäädin.

Sisäänrakennettu verkko

Another smart feature of the UIP4000hdT is the operation and control via LAN (local area network) which facilitates the operation and allows for high processing flexibility. All information of the sonication process is recorded on SD/USB data card, automatically. A plugable sensor measures the temperature permanently whereas an optionally available pressure sensor can be additionally plugged.

automaattinen taajuuden viritys

Like all Hielscher ultrasonic devices, the UIP4000hdT comes with an intelligent automatic frequency tuning. When the device is switched on, the generator will sense the optimal operational frequency. It will then drive the device at this frequency. That improves the overall energy efficiency and reliability of our ultrasonic devices. All you need to do, is to switch the system on. The generator will perform the frequency tuning automatically in a fraction of a second.

Hielscher's UIP4000hdT in enclosed in a stainless steel cabinet, which provides sound isolation.

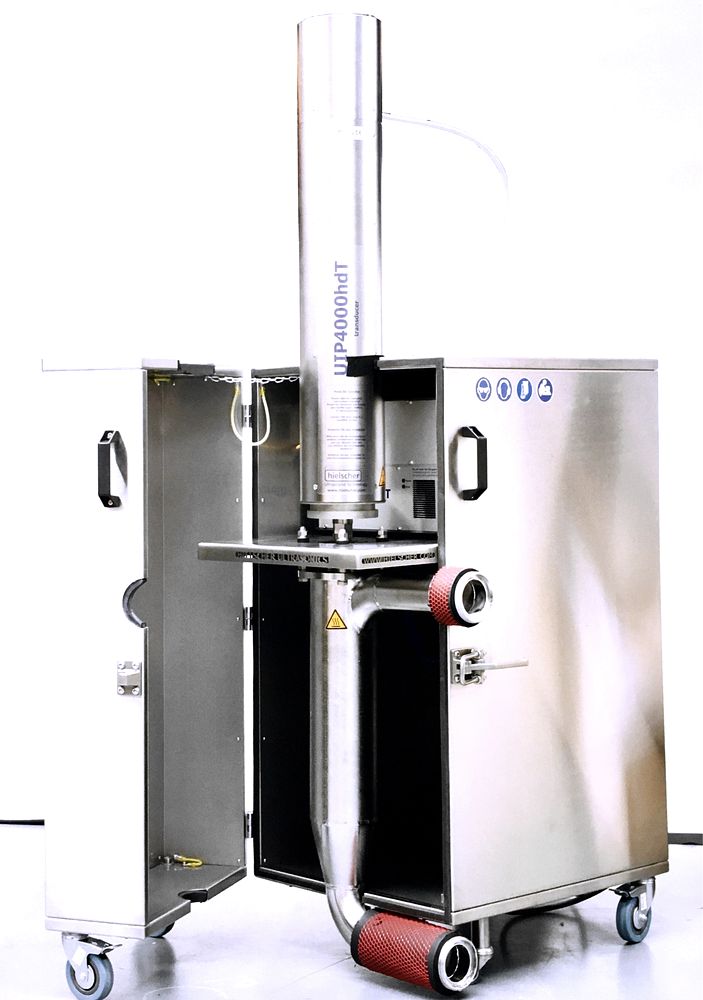

UIP4000hdT in cabinet

High-Performance 4000 Watts Sonicator

Hielscher Ultrasonics industrial sonicators can deliver very high amplitudes. Amplitudes of up to 200µm can be easily continuously run in 24/7 operation. For even higher amplitudes, customized ultrasonic sonotrodes are available. The robustness of Hielscher’s ultrasonic equipment allows for 24/7 operation at heavy duty and in demanding environments.

Ota yhteyttä! / Kysy meiltä!

Käytä alla olevaa lomaketta, jos haluat pyytää lisätietoja ultraäänihomogenisoinnista. Olemme iloisia voidessamme tarjota sinulle ultraäänijärjestelmän, joka täyttää vaatimuksesi.












Not sure which ultrasonic system is the most suitable for your process?
Alla oleva taulukko antaa sinulle viitteitä ultraäänilaitteidemme likimääräisestä käsittelykapasiteetista:

Erän tilavuus Virtausnopeus Suositellut laitteet
0.5 - 1.5 ml n.a. VialTweeter
1 - 500 ml 10 - 200 ml / min UP100H
10 - 2000ml 20–400 ml/min UP200Ht, UP400St
0.1 - 20L 0.2–4 l/min UIP2000hdT
10-100L 2 - 10L / min UIP4000hdT
n.a. 10-100L / min UIP16000
n.a. suurempi klusteri UIP16000



The Sonicator UIP4000hdT in Research and Science

The UIP4000hdT is a popular 4000 watts powerful ultrasonic lab homogenizer, frequently used in research laboratories and R&D facilities. Below you can find the FactSheet of the UIP4000hdT as well as a selection of scientific articles featuring the probe-type sonicator UIP4000hdT. The articles span from cell disruption and extraction of bioactive compounds and extra virgin olive oil, biodiesel transesterification, and material science. If you are looking for a specific application and related scientific references, please contact us.




Faktoja, jotka kannattaa tietää

Basics of Ultrasonic Homogenization

Ultrasonic homogenizers are used for dispersion, emulsification, wet-milling, nano- & micronization, extraction (from plants and cell tissues), synthesis and catalysis of chemicals (so-called sono-chemistry) as well as degassing. Ultrasonic homogenization is often used as umbrella term that includes all these fore-mentioned applications. The ultrasound-assisted homogenization is based on the working principle of acoustic caviation, which occurs when intense ultrasound waves are coupled into a liquid medium. Under the intense ultrasound waves, minute vacuum bubbles are generated in the medium, which grow over the high pressure / low pressure cycles of the ultrasound waves. At a certain point, when the micro-bubbles have reached an energetic status, at which they cannot absorb more energy, they collapse violently. This phenomenon of vacuum bubble implosion is called cavitation. The implosion of the vacuum bubbles generates shock waves, streaming / liquid jets, high shear, high temperature and pressure differentials with sufficient energy to break covalent bonds, flex molecules and induce chemical reactions.

For best results in the homogenization process, the ultrasonic processor and its setup can be optimized by changing the following variables:

  • Amplitude (displacement of the sonotrode) and intensity
  • Paine
  • lämpötila
  • Sonication vessel (batch or flow cell: size, geometry, flow rate)

Hielscher high performance ultrasonic processors use piezoelectric generators made of lead zirconate titanate crystals. The vibrations are transmitted down a titanium horn tuned resonate at 19-26 kHz. From the horn the ultrasonic vibration is coupled via ultrasonic sonotrode (tip, probe) into the fluid medium. Hielscher offers ultrasonic processors with power ratings from 50 to 16,000 watts per ultrasonic unit and covers thereby the requirements from small lab ultrasonicators and bench-top devices up to pilot plant and fully commercial ultrasonic units for high volume throughput.

Sophisticated Process Control for Optimal Sonication Results

Sonication conditions are crucial for output, process results and reproducibility of ultrasonic processes. Besides the precise control of ultrasonic power output, adjusted by amplitude and intensity, temperature, pressure and sonication time are important factors. Hielscher’s digital ultrasonic processors come with a plugable thermo-couple. A plugable pressure sensor is optionally available. Both sensors are connected with the ultrasonic generator, which is equipped with an internal SD card. The software of the ultrasonic device writes all process data (date, time, amplitude, ultrasonic energy, net energy, temperature, pressure) in a CSV file on the SD card. This makes your sonication runs comparable and reproducible.

For high amplitudes, a higher output power is required. Under increased load such as high viscosity of the medium or elevated pressure, an increased ultrasound power is needed to drive the sonotrode at a desired amplitude. The larger the front surface of the sonotrode (tip), the more power is required to let it resonate. With a larger sonotrode, larger volumes can be processed. Hielscher’s industrial sonotrodes and Cascatrodes can deliver very high amplitudes. Amplitudes of up to 200µm can be easily continuously run in 24/7 operation. For even higher amplitudes, customized ultrasonic sonotrodes are available. The sturdiness of Hielscher’s ultrasonicators allows for 24/7 operation under heavy load and under demanding conditions.

For most ultrasonic processes, temperature of sonicated medium should be as low as possible for a low temperatures promotes the generation of intense cavitation. Hielscher offers ultrasonic flow cells and reactors with cooling jackets, which support the maintenance of optimal process temperatures. Flow cells and reactores are pressurizable, too. Under elevated pressures, more intense cavitation occurs. Therefore, Hielscher offers reactors that can easily pressurized up to 300atm.

Hielscher Ultrasonics manufactures ultrasonic probes of different sizes and shapes (e.g. Cascatrodes), which allows to scale up all ultrasonic process results completely linear. With 16kW ultrasonic homogenizers and manifold types of sonotrodes and flow cell reactors, Hielscher is your long-term experienced partner for ultrasonic processes on industrial scale. Besides the variety of standard ultrasonicators, Hielscher designs and manufactures customized systems, too.
