UIP500hdTIndustrial Processing in Small Scale

The ultrasonic processor UIP500hdT (20kHz, 500W) is an industrial grade device for pilot testing and small scale processing of liquids. Amongst the most common applications of the UIP500hdT are homogenization, dispersing, emulsification, cell disintegration and sonochemical reactions. A full color touch display, browser remote control, automatic data protocoling on an integrated SD-Card as well as temperature and pressure sensors gives you full process control and a high operation comfort.

UIP500hdT SonicatorBridging the Gap between Lab and Pilot Scale

The UIP500hdT is a 500 watts powerful probe-type sonicator that operates at an ultrasonic frequency of 20kHz and fulfils all common industrial standards for mixing equipment. Thereby, the UIP500hdT sonicator closes the gap between ultrasonic lab homogenizers and industrial ultrasonicators.
Ultrasonic waves in the frequency range of 20kHz and higher create intense cavitation in liquids. The cavitational effects can be used for manifold applications, such as: emulsifying, dispersing, homogenizing, cell disruption, extraction, deagglomeration, degassing and sonochemical reactions.

The UIP500hdT can be used with a lot of accessories, such as various sonotrodes, boosters, and flow cells. For the processing of batches larger than 5 liters, we generally recommend to sonicate using a flow cell reactor (flow mode) to achieve a higher processing consistency. When used for the sonication of liquids in flow mode, the UIP500hdT can typically process between 0.25 and 2.0L/min. Please note that the actual flow rate will depend on the application. As all our devices, the UIP500hdT can be operated 24 hours per day (24h/7d). Therefore, this setup could process approx. 0.5 to 3m3 per day.
For higher production throughput, we recommend using either of the following devices:




Information Request




Note our privacy policy.

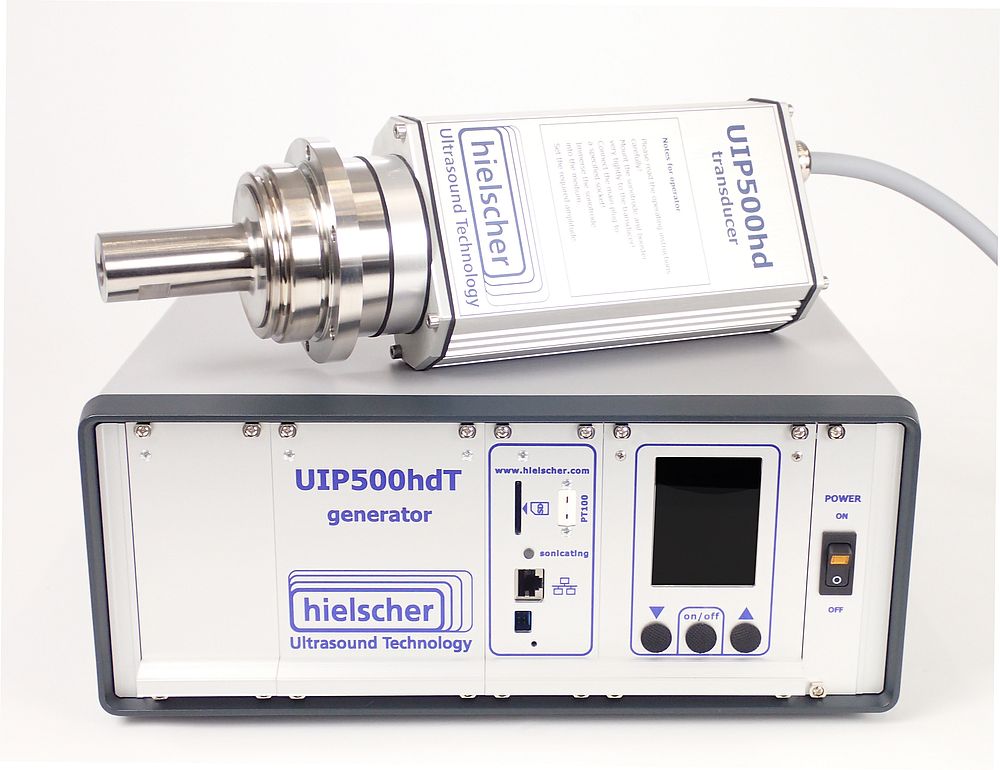

The ultrasonicator UIP500hdT is a 500 W powerful ultrasound homogenizer (Click to enlarge!)

UIP500hdT with flow cell

Power Ultrasound with Full Process Control

Power ultrasound is the process solution for various liquid applications, such as



Ultrasonically synthesized nanofluids are efficient coolants and heat exchanger liquids. Thermoconductive nanomaterials increase heat transfer and heat dissipation capacity significantly. Sonication is well established in the synthesis and functionalization of thermoconductive nanoparticles as well as the production of stable high-performant nanofluids for cooling applications.

Dispersing CNTs in Polyethylene Glycol (PEG) - Hielscher Ultrasonics

Video Thumbnail


The UIP500hdT delivers intense ultrasonic waves generating strong cavitation. Ultrasonic cavitation and the resulting shear forces fulfill demanding tasks without problems. To guarantee a consistent process quality, not only the actual ultrasound power delivered is essential, instead all important process parameters must be controlled. The new generation of hdT ultrasonic processors enables the user to operate the ultrasonic system via touch display or browser remote control. All relevant process parameterssuch as amplitude, sonication time, temperature and pressureare automatically recorded and saved as CSV file on the integrated SD/USB ComboCard.
Thereby, the new UIP500hdT provides the same ultrasound power as its predecessor UIP500hd, but excels with a broad range of additional features, which makes the ultrasound process much more user-friendly. From the operational view, the precise control of all ultrasonic process parameters are absolute key functions.

The UIP500hdT features:

  • 500 watts power ultrasound
  • built for heavy-duty operation
  • runs 24/7
  • industrial standard
  • color touch display
  • browser remote control
  • data recording
  • integrated SD/USB ComboCard
  • temperature sensor
  • pressure sensor (optionally available)
  • LAN connection
  • Ethernet connection
  • no software installation
  • automatic frequency tuning



Ultrasound and ultrasonication are used in for manifold applications such as homogenization, emulsification, deagglomeration, wet-milling and food processing.

Probe-type sonicators UIP500hdT (500W), UIP1000hdT (1000W) and UIP1500hdT (1500W)each equipped with an ultrasonic flow reactor



Request a Proposal for this Item!

To receive a proposal, please put your contact details into the form below. A typical device configuration is pre-selected. Feel free to revise the selection before clicking the button to request the proposal.








Please indicate the information, that you wish to receive, below:



  • UIP500 Transducer

    consisting in ultrasonic transducer and generator, ultrasonic frequency 20kHz, automatic frequency tuning system, amplitude 25 micron, amplitude adjustable from 20 to 100%, dry running protected, transducer IP64 grade, digital control, with colored touch-screen, integrated count-down timer (0.1sec to 99 days), shutdown when final energy input reached: Ws, Wh, kWh; automatic calibration when needed: determination of amplitude-dependent idle power to dislpay the effective energy input, data recording: amplitude, power, time, temperature on internal SD/USB ComboCard (1GB), display and remote control via browser on PC or MAC without software installation, with temperature sensor, temperature indication: °C, °F (-50°C to 200°C), temperature monitoring: variable switch-off/on points (-50°C – 200°C), 3m cable transducer to generator, with mounting tools, titanium horn with female thread M14x1



  • for use with flange RFLA100, for flow cell or batch operation, titanium, tip diameter 18mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:3.5



  • for use with flange RFLA100, for flow cell or batch operation, titanium, tip diameter 22mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:2.4



  • for use with flange RFLA100, for flow cell or batch operation, titanium, tip diameter 34mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:1.0



  • for use with flange RFLA100, for flow cell or batch operation, titanium, tip diameter 40mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:0.7



  • for batch operation, titanium, tip diameter 50mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:0.5



  • with oscillation-decoupling stainless steel flange, for flow cell or batch operation, titanium, tip diameter 50mm, male thread M14x1, approx. length 125mm (w/o thread), amplitude ratio approx. 1:0.5



  • with O-ring sealing (2xNBR) to the sonotrode, diameter 100mm, stainless steel, for use with sonotrodes BS4d18, BS4d22, BS4d34 or BS4d40, with O-Ring (NBR) for mounting to flow cells FC100L1-1S or FC100L1K-1S



  • decomposable stainless steel reactor, max. pressure 5 bars, for UIP500hdT to UIP2000hdT in combination with sonotrode flange and stand ST2, NBR O-rings, tube connectors (1/2 inch) with clip
    (customized flow cells pressurizable up to 100 barg are available on request)



  • decomposable stainless steel reactor with cooling jacket, max. pressure 5 bar, for UIP500hdT to UIP2000hdT in combination with sonotrode flange and stand ST2, NBR O-rings, tube connectors (fluid 1/2 inch, cooling 1/4 inch) with clip
    (customized flow cells pressurizable up to 100 barg are available on request)



  • for flow cells FC100L1-1S or FC100L1K-1S, for reduction of the reactor volume, for use with sonotrode BS4d18(F) or BS4d22(F), NBR O-rings, stainless steel



  • Insert34, for flow cells FC100L1-1S or FC100L1K-1S, for reduction of the reactor volume, for use with sonotrode BS4d18(F), BS4d22(F) or BS4d34(F), NBR O-rings, stainless steel



  • for mechanical increase (or decrease) of the amplitude at the sonotrode, amplitude ratio 1:1.2 (or 1:0.83), titanium, female threads M14x1, for use with titanium thread bolts (TiM14x1)



  • for mechanical increase (or decrease) of the amplitude at the sonotrode, amplitude ratio 1:1.4 (or 1:0.71), titanium, female threads M14x1, for use with titanium thread bolts (TiM14x1)



  • for mechanical increase (or decrease) of the amplitude at the sonotrode, amplitude ratio 1:1.8 (or 1:0.56), titanium, female threads M14x1, for use with titanium thread bolts (TiM14x1)



  • for mechanical increase (or decrease) of the amplitude at the sonotrode, amplitude ratio 1:2.2 (or 1:0.45), titanium, female threads M14x1, for use with titanium thread bolts (TiM14x1)



  • Stand for ultrasonic processors UIP500hdT, UIP1000hdT and UIP2000hdT

    electro-polished stainless steel, required for flow cells FC100L1-1S or FC100L1K-1S, adjustable height 370 to 590mm, collecting tray



  • LabLift, e.g. for the intense sonication of liquids in glass beakers in the laboratory.

    for the easy positioning of samples under the ultrasonic probes to control immersion depth, stainless steel, footprint 100x100mm, adjustable height: 50 to 125mm



  • Sound Protection Box for UIP500hdT, UIP1000hdT and UIP2000hdT ultrasonicators to reduce the sound emmission of cavitational processing.

    UIP500hdT to UIP2000hdT , e.g. for use with stand ST2 and flow cells FC100L1-1S or FC100L1K-1S


Please note our privacy policy.


Sonicator with Colour Touch-Screen

Coloured touch screen for the comfortable operation of Hielscher sonicatorsThe colored touch-screen is a great enhancement making the device even more user-friendly. The touch- and stylus-sensitive screen allows for easy handling and guarantees the accurate setting of operating parameters and the display of the ultrasound power setting. The digital control menu is intuitive to use and features a clearly structured settings menu. The amplitude/ power setting and the pulse mode can be adjusted by a colored touch-slider (with 1%, 5% or 10% snap). The user decides, if he prefers the display of amplitude and power as colored bargraphs or numerical representation. The display can be changed from regular view mode into BIG NUMBER mode, where a high contrast and big font-size ease its readability.

Operate the UIP500hdT via Browser Remote Control

Hielscher ultrasonicators can be remotely controlled via browser control. Sonication parameters can be monitored and adjusted precisely to the process requirements. Due to its new LAN web interface, the UIP500hdT can be controlled using any common browser, such as Internet Explorer, Safari, Firefox, Mozilla, mobile IE/Safari. The LAN connection is a simple plug-n-play setup that requires no software installation. The ultrasonic device acts as DHCP server/client and requests or assigns an IP automatically. The device can be operated directly from the PC/MAC or using a switch or router. Using an optional pre-configured wireless router, the device can be controlled from most smartphones or tablet computers, e.g. the Apple iPad. Using the port-forwarding of a connected router, you could control your UIP500hdT via internet from anywhere in the worldusing your smart-phone or tablet as remote control.

Built-In Network

The UIP500hdT can be operated and controlled via LAN (local area network, see right box) which facilitates the operation and allows for high processing flexibility. All information of the sonication process is recorded on SD/USB data card, automatically. A plugable sensor measures the temperature permanently. An optionally available pressure sensor can be additionally plugged to record the pressure.

Automatic Frequency Tuning

All Hielscher ultrasonic devices are equipped with an intelligent automatic frequency tuning. When the device is switched on, the generator will sense the optimal operational frequency and ensures that the device operates at this frequency. The automatic frequency tuning improves the overall energy efficiency and reliability of our ultrasonic devices.

Sonicator with Industrial Grade and Outstanding Efficiency

The UIP500hdT is built for commercial production and fulfills industrial standards. Its robust, durable design has been proven in many commercial installations worldwide where it is used for production and heavy-duty applications. This ultrasonic processor requires only very little maintenance, is easy to install and simple to clean and sanitize. Special flow cell reactors that comply the advanced CIP (clean-in-place) and SIP (sterilize-in-place) requirements are available, too. The transducer of the UIP500hdT is IP64 grade, so that it can be installed in demanding environments. The transducer can handle dirt, dust, moisture, outside operation etc., while the generator can be placed remotely in another area.
(Click for larger view!) The overall energy efficiency is important for the ultrasonic processing of liquids. The efficiency describes how much of the power is transmitted from the plug into the liquid. Our ultrasonic homogenizers have an overall efficiency of more than 80%.
Our ultrasonic devices have a very high efficiency in the conversion of electrical energy into mechanical oscillations of the sonotrode, so that transducers of our bench-top ultrasonicators have a closed housing. There are no ventilation slits in the transducer case. Since the energy loss, which would cause a heat-up in the closed transducer housing is very low, no forced cooling, such as compressed air or water is needed. However, the most important fact is that more energy is converted into ultrasound waves in the liquid, resulting in a more intense sonication. The overall energy efficiency of the UIP500hdT is approx. 80-90% from the power plug into the liquid (click at the image above to enlarge the chart).

Sonicator with Full Amplitude Control and Outstanding Performance

Ultrasonic cavitation in waterThe UIP500hdT can be run permanently at 500W. The power is transmitted at a controlled amplitude, so that the displacement of the mechanical ultrasonic vibrations at the sonotrode is constant under all load conditions (e.g. at fluctuating pressures, viscosities etc.). You can change the amplitude from 20 to 100% at the generator and by mounting one of the various booster horns. The chosen amplitude is being held constant, while sonicating any material at any pressure. Thereby you have the full control over the most important ultrasound parameter: Amplitude.

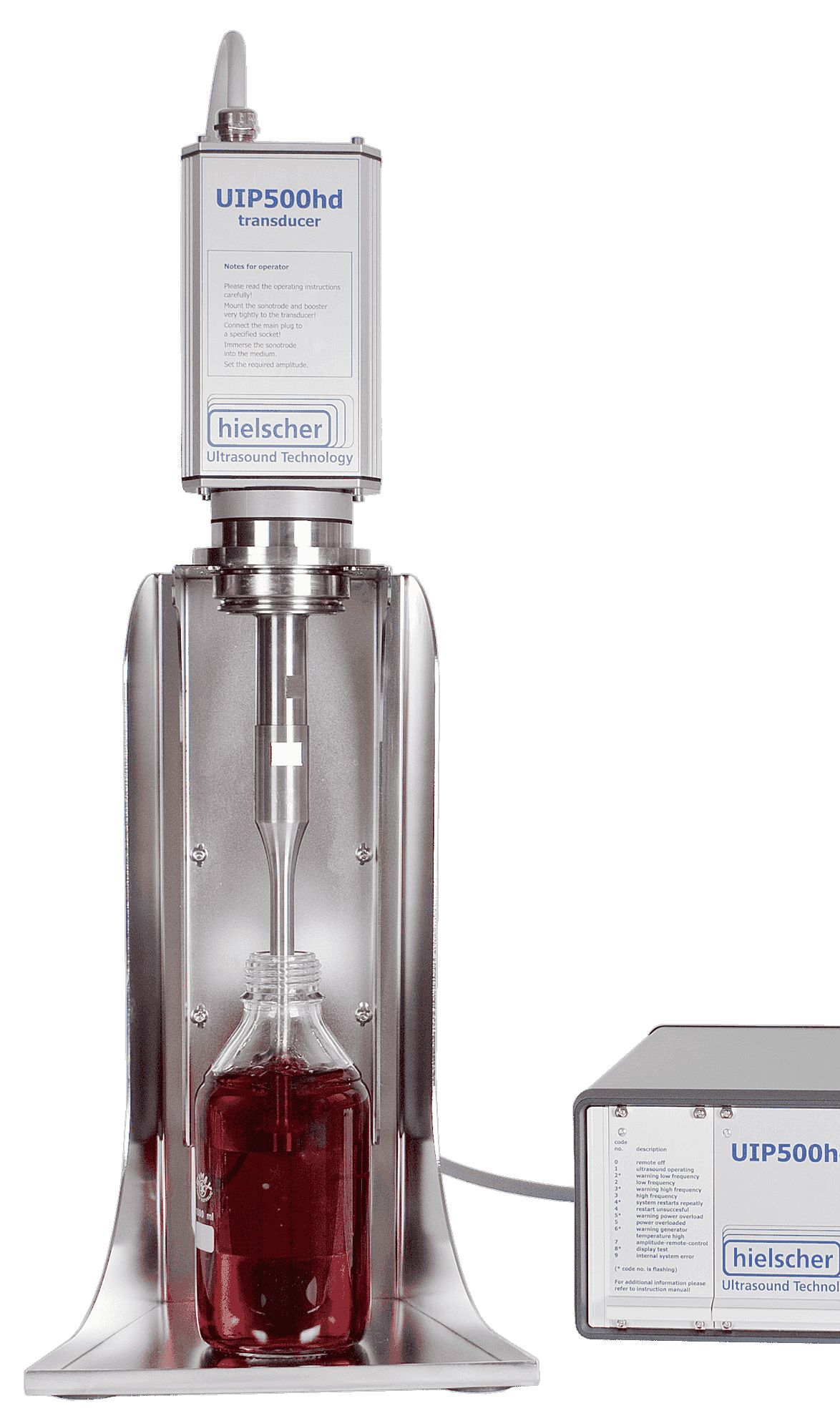

Probe-type sonicator UIP500hdT is used for processing of small to medium volumes in batch or flow-through mode.

Bench-top ultrasonic processor UIP500hdT (500 watts, 20kHz)

Information Request




Note our privacy policy.


Upgrade!
If you have a predecessor such as the UIP500hd, UIP1000hd, UIP1500hd, UIP2000hd, you can upgrade your device to the digital hdT version. Click here to learn more about the upgrade from hd to hdT version!
