सोनो-ओजोनेशन: उन्नत ऑक्सीकरण के लिए सोनोकेमिस्ट्री और ओजोनेशन का सिनर्जी

सोनो-ओजोनेशन एक उन्नत ऑक्सीकरण प्रक्रिया है जो एकल उपचार प्रणाली में अल्ट्रासाउंड को ओजोनेशन के साथ जोड़ती है। जबकि दोनों प्रौद्योगिकियां अपने आप में प्रभावी हैं, उनका एक साथ आवेदन अक्सर अकेले किसी भी विधि की तुलना में एक मजबूत प्रभाव पैदा करता है। यह तालमेल पर्यावरणीय अनुप्रयोगों में विशेष रूप से मूल्यवान है, जहां लगातार कार्बनिक प्रदूषकों, सूक्ष्मजीवों, रंगों, फार्मास्यूटिकल्स, कीटनाशकों, औद्योगिक रसायनों और अन्य दूषित पदार्थों को कुशलतापूर्वक नष्ट किया जाना चाहिए। ओजोन रसायन विज्ञान के साथ ध्वनिक गुहिकायन को एकीकृत करके, सोनो-ओजोनेशन कट्टरपंथी पीढ़ी को बढ़ाता है, बड़े पैमाने पर हस्तांतरण में सुधार करता है, और तरल मीडिया में ऑक्सीडेटिव प्रतिक्रियाओं को तेज करता है।

सोनिकेशन ओजोनेशन में सुधार कैसे करता है?

The principle of sono-ozonation is based on the interaction between ultrasonic cavitation and ozone decomposition. When high-intensity ultrasound is introduced into a liquid, alternating compression and rarefaction cycles generate microscopic cavitation bubbles. These bubbles grow and violently collapse, producing localized hot spots with extremely high temperatures and pressures for very short periods of time. Under these extreme conditions, water molecules can dissociate into highly reactive hydroxyl radicals. These radicals are among the most powerful non-selective oxidants in aqueous systems and are able to attack a broad range of organic compounds.

अल्ट्रासोनिकली-सहायता प्राप्त ओजोनशन के लाभ

Ozone is also a strong oxidizing agent and is widely used for water and wastewater treatment. It can react directly with certain contaminants or decompose in water to form secondary oxidants such as hydroxyl radicals. However, ozonation can be limited by gas-liquid mass transfer, ozone solubility, and the selectivity of direct ozone reactions. Ultrasound helps overcome these limitations. Cavitation improves the dispersion of ozone gas in the liquid, reduces bubble size, renews the gas-liquid interface, and promotes turbulent micro-mixing. As a result, ozone dissolves more effectively and decomposes more readily into reactive radical species.

The combined effect is a more efficient oxidative environment. In sono-ozonation, ozone molecules may enter cavitation bubbles or concentrate near bubble interfaces, where they are exposed to intense thermal and mechanical conditions during collapse. This accelerates ozone decomposition and increases the formation of hydroxyl radicals and other reactive oxygen species. The process therefore improves the degradation rate of organic pollutants and can reduce treatment time compared with conventional ozonation. In many applications, sono-ozonation also improves mineralization, meaning that organic molecules are not only transformed into intermediate compounds but are further oxidized toward carbon dioxide, water, and inorganic ions.

One of the most important advantages of sono-ozonation is its ability to treat compounds that are resistant to conventional oxidation. Many environmental contaminants, including dyes, phenolic compounds, endocrine-disrupting chemicals, pharmaceutical residues, and surfactants, can be difficult to remove completely. Ozone may react selectively with electron-rich groups, while ultrasound-induced radicals can attack less selective molecular sites. The combination expands the range of oxidation pathways and improves the probability of contaminant breakdown. This makes sono-ozonation attractive for wastewater treatment, drinking water polishing, leachate treatment, process water recycling, and remediation of contaminated aqueous streams.

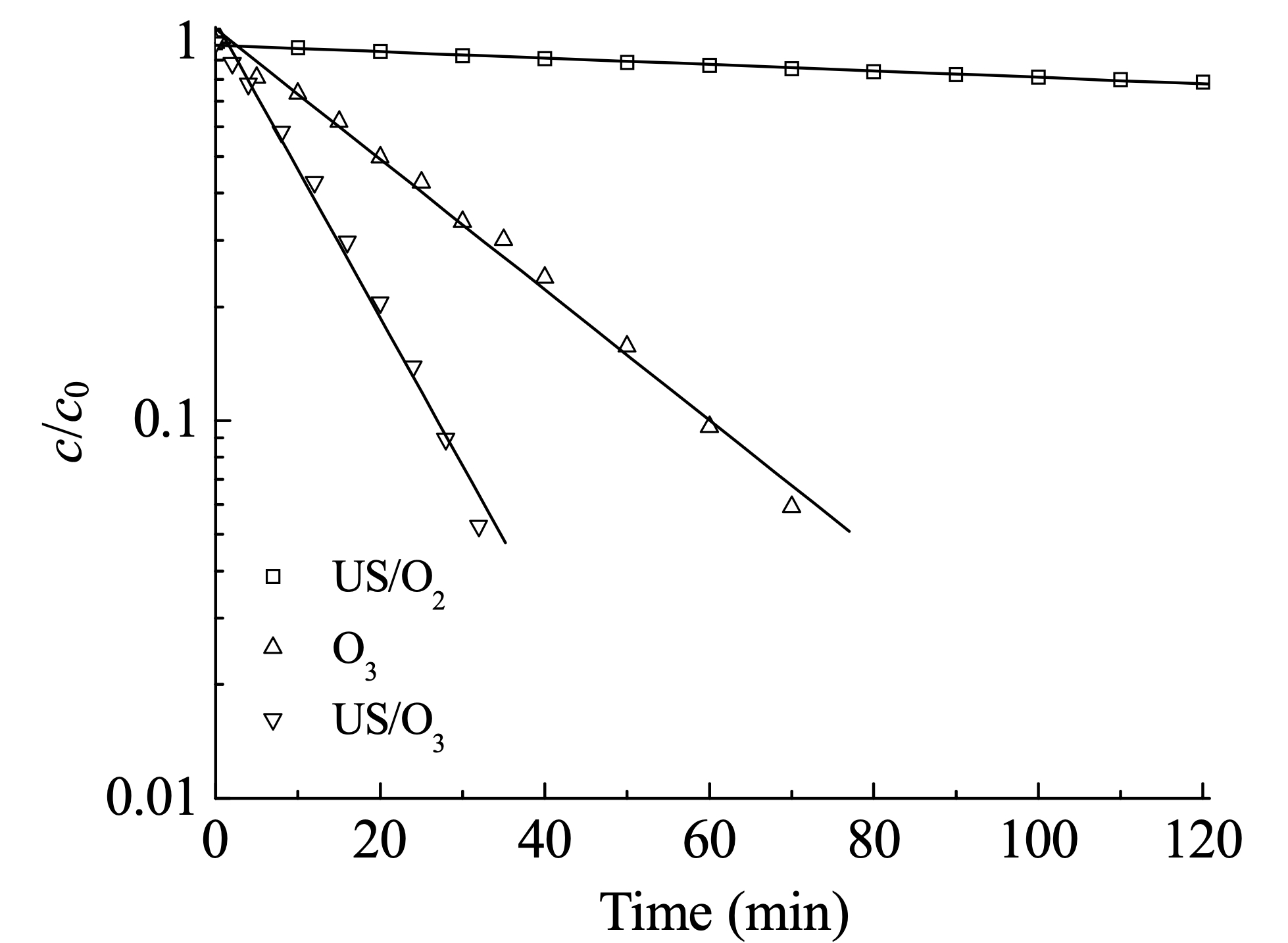

O2, ओजोनेशन और सोनोलिटिक ओजोनेशन के साथ सोनिकेशन के कारण पी-नाइट्रोफेनॉल का प्रथम-क्रम का गिरावट। O3 गैस का प्रवाह 40 मिली/मिनट, पीएच=3, टी=298 के पर होता है। प्रारंभिक पी-नाइट्रोफेनॉल सांद्रता 50 मिलीग्राम/लीटर थी। ट्रांसड्यूसर की अल्ट्रासोनिक बिजली उत्पादन 125 डब्ल्यू थी
ग्राफिक और अध्ययन: ©जू एट अल., 2005

सोनो-ओजोनेशन के अनुप्रयोग

Sono-Ozonation is highly relevant for microbial inactivation. Ultrasound can physically disrupt microbial cells through shear forces, microjets, shock waves, and localized pressure changes. Ozone, meanwhile, oxidizes cell walls, membranes, enzymes, and genetic material. When both methods are applied together, the antimicrobial effect can be enhanced. Cavitation may weaken or damage cell structures, allowing ozone and radical species to attack more effectively. This combined action can improve disinfection performance against bacteria, fungi, algae, and other microorganisms. For applications where microbial control and organic contaminant degradation are both required, sono-ozonation offers a powerful multifunctional treatment approach.

Beyond chemical degradation and antimicrobial activity, sono-ozonation can improve physicochemical properties of treated liquids. Ultrasonic cavitation increases mixing intensity, promotes degassing and gas dispersion, and enhances the contact between oxidants and contaminants. These effects can support reductions in color, odor, chemical oxygen demand, turbidity, and certain refractory organic fractions. In some processes, sono-ozonation can also improve downstream treatment by converting persistent substances into more biodegradable compounds, thereby increasing the efficiency of biological treatment steps.

Closed Reactors for Efficient Processing and Easy Scale-up

A practical advantage of sono-ozonation is that it can be implemented in closed reactor systems. Hielscher probe-type sonicators are particularly suitable for this type of integration because they deliver high-intensity ultrasound directly into the liquid through a titanium sonotrode. The probe can be mounted into a closed vessel or flow-through reactor using appropriate ports, flanges, or fittings. At the same time, ozone can be introduced through a gas inlet, diffuser, sparger, or recirculation loop. This allows ultrasound and ozone to act simultaneously within the same reaction volume.

Such a setup is straightforward and scalable. The closed reactor contains the liquid to be treated, while the ultrasonic probe transfers acoustic energy directly into the medium. Ozone flows continuously or intermittently through the reactor, depending on the process requirements. The ultrasound improves ozone dispersion and contact with the liquid phase, while the closed configuration helps contain ozone safely and enables controlled off-gas handling. Excess ozone can be directed to an ozone destructor or suitable exhaust treatment system. Important operating parameters include ultrasonic amplitude, power input, treatment time, ozone concentration, gas flow rate, temperature, pressure, pH, and reactor geometry.

Hielscher Sonicators for Ozonation and Advanced Oxidation

Hielscher probe-type sonicators can be used for batch or continuous sono-ozonation processes. In laboratory development, compact ultrasonicators allow researchers to evaluate reaction kinetics, pollutant degradation, and microbial reduction under controlled conditions. For pilot and industrial operation, more powerful ultrasonic systems can be integrated into larger tanks or continuous flow reactors. Because probe sonication introduces energy efficiently into the liquid, it is well suited for process intensification where strong cavitation and reliable reproducibility are required.

Sono-Ozonation represents a highly effective synergistic method that combines the chemical oxidation power of ozone with the physical and sonochemical effects of ultrasound. The process increases radical formation, improves gas-liquid mass transfer, accelerates contaminant degradation, and enhances antimicrobial activity. Its compatibility with closed reactors and direct integration of Hielscher probe-type sonicators makes sono-ozonation a practical and versatile approach for environmental treatment, water purification, wastewater remediation, and advanced oxidation applications.

नीचे दी गई तालिका आपको हमारे अल्ट्रासोनिकेटर की अनुमानित प्रसंस्करण क्षमता का संकेत देती है:

डिजाइन, विनिर्माण और परामर्श – गुणवत्ता जर्मनी में निर्मित

Hielscher अल्ट्रासोनिकेटर अपने उच्चतम गुणवत्ता और डिजाइन मानकों के लिए प्रसिद्ध हैं। मजबूती और आसान संचालन औद्योगिक सुविधाओं में हमारे अल्ट्रासोनिकेटर के सुचारू एकीकरण की अनुमति देता है। किसी न किसी स्थिति और मांग वातावरण आसानी से Hielscher ultrasonicators द्वारा नियंत्रित कर रहे हैं।

Hielscher Ultrasonics एक आईएसओ प्रमाणित कंपनी है और अत्याधुनिक प्रौद्योगिकी और उपयोगकर्ता-मित्रता की विशेषता वाले उच्च प्रदर्शन अल्ट्रासोनिकेटर पर विशेष जोर देती है। बेशक, Hielscher अल्ट्रासोनिकेटर सीई के अनुरूप हैं और उल, सीएसए और RoHs की आवश्यकताओं को पूरा करते हैं।

साहित्य/सन्दर्भ
