Sono-Ozonacija: Sinergije sonokemije i ozonacije za naprednu oksidaciju

Sono-Ozonation is an advanced oxidation process that combines ultrasound with ozonation in a single treatment system. While both technologies are effective on their own, their simultaneous application often produces a stronger effect than either method alone. This synergy is particularly valuable in environmental applications, where persistent organic pollutants, microorganisms, colorants, pharmaceuticals, pesticides, industrial chemicals, and other contaminants must be degraded efficiently. By integrating acoustic cavitation with ozone chemistry, sono-ozonation enhances radical generation, improves mass transfer, and accelerates oxidative reactions in liquid media.

How Does Sonication Improve Ozonation?

The principle of sono-ozonation is based on the interaction between ultrasonic cavitation and ozone decomposition. When high-intensity ultrasound is introduced into a liquid, alternating compression and rarefaction cycles generate microscopic cavitation bubbles. These bubbles grow and violently collapse, producing localized hot spots with extremely high temperatures and pressures for very short periods of time. Under these extreme conditions, water molecules can dissociate into highly reactive hydroxyl radicals. These radicals are among the most powerful non-selective oxidants in aqueous systems and are able to attack a broad range of organic compounds.

Prednosti ultrazvučno potpomognute ozonacije

Ozone is also a strong oxidizing agent and is widely used for water and wastewater treatment. It can react directly with certain contaminants or decompose in water to form secondary oxidants such as hydroxyl radicals. However, ozonation can be limited by gas-liquid mass transfer, ozone solubility, and the selectivity of direct ozone reactions. Ultrasound helps overcome these limitations. Cavitation improves the dispersion of ozone gas in the liquid, reduces bubble size, renews the gas-liquid interface, and promotes turbulent micro-mixing. As a result, ozone dissolves more effectively and decomposes more readily into reactive radical species.

The combined effect is a more efficient oxidative environment. In sono-ozonation, ozone molecules may enter cavitation bubbles or concentrate near bubble interfaces, where they are exposed to intense thermal and mechanical conditions during collapse. This accelerates ozone decomposition and increases the formation of hydroxyl radicals and other reactive oxygen species. The process therefore improves the degradation rate of organic pollutants and can reduce treatment time compared with conventional ozonation. In many applications, sono-ozonation also improves mineralization, meaning that organic molecules are not only transformed into intermediate compounds but are further oxidized toward carbon dioxide, water, and inorganic ions.

One of the most important advantages of sono-ozonation is its ability to treat compounds that are resistant to conventional oxidation. Many environmental contaminants, including dyes, phenolic compounds, endocrine-disrupting chemicals, pharmaceutical residues, and surfactants, can be difficult to remove completely. Ozone may react selectively with electron-rich groups, while ultrasound-induced radicals can attack less selective molecular sites. The combination expands the range of oxidation pathways and improves the probability of contaminant breakdown. This makes sono-ozonation attractive for wastewater treatment, drinking water polishing, leachate treatment, process water recycling, and remediation of contaminated aqueous streams.

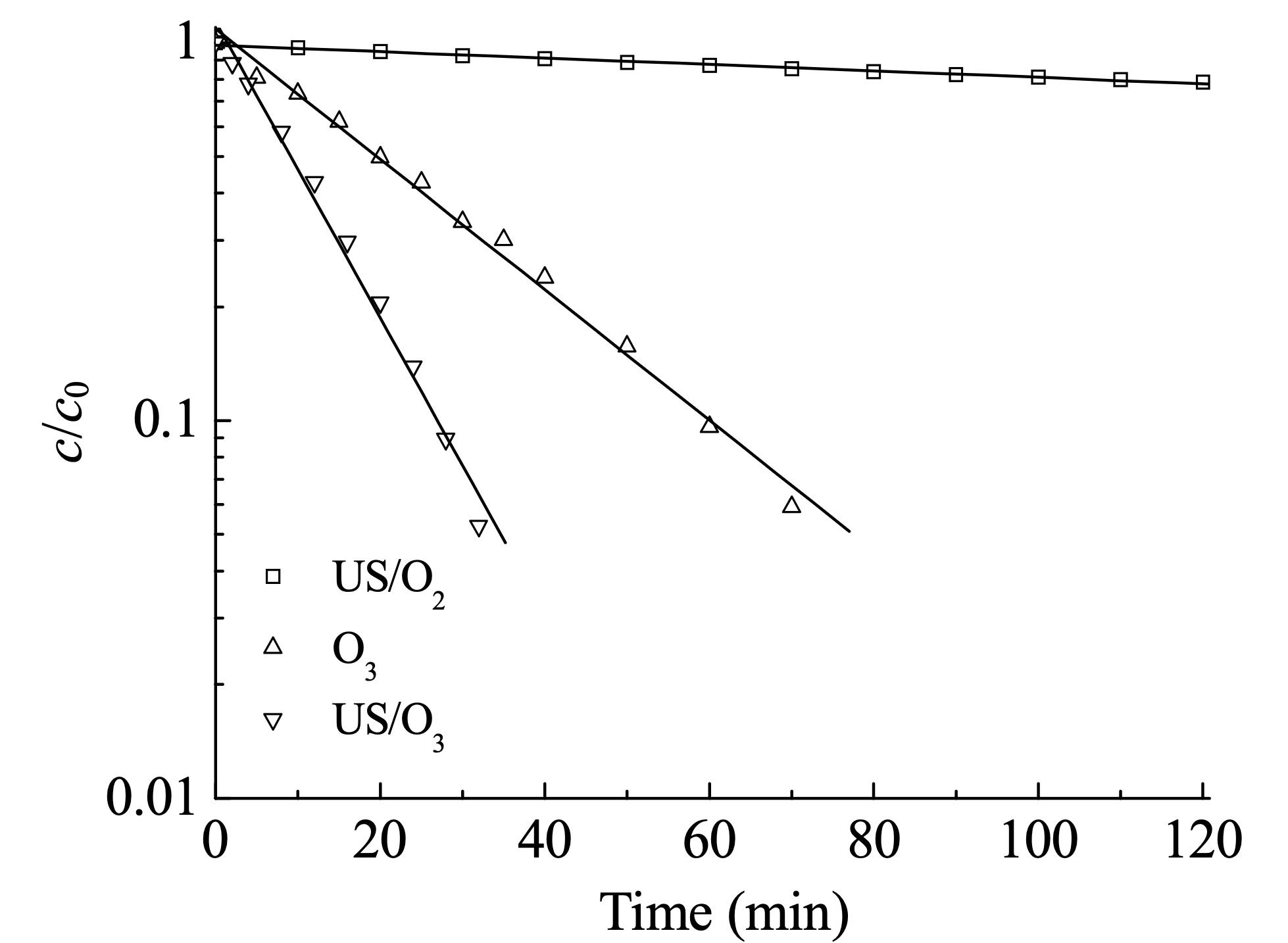

Prva-ordinacija degradacije p-nitrofenola uslijed sonikacije sa O2, ozonacijom i sonolitičkom ozonacijom. Protok O3 gasa 40 ml/min, pH=3, T=298 K. Početna koncentracija p-nitrofenola iznosila je 50 mg/L. Generisanje ultrazvučne snage transduktora bilo je 125 W.
Grafika i studija: ©Xu et al., 2005

Primjene sono-ozonacije

Sono-Ozonation is highly relevant for microbial inactivation. Ultrasound can physically disrupt microbial cells through shear forces, microjets, shock waves, and localized pressure changes. Ozone, meanwhile, oxidizes cell walls, membranes, enzymes, and genetic material. When both methods are applied together, the antimicrobial effect can be enhanced. Cavitation may weaken or damage cell structures, allowing ozone and radical species to attack more effectively. This combined action can improve disinfection performance against bacteria, fungi, algae, and other microorganisms. For applications where microbial control and organic contaminant degradation are both required, sono-ozonation offers a powerful multifunctional treatment approach.

Osim hemijske degradacije i antimikrobne aktivnosti, sono-ozonacija može poboljšati fizikalno-hemijska svojstva tretiranih tečnosti. Ultrazvučna kavitacija povećava intenzitet miješanja, podstiče degasiranje i disperziju gasova, te poboljšava kontakt između oksidanata i zagađivača. Ovi efekti mogu podržati smanjenje boje, mirisa, hemijske potrošnje kiseonika, zamućenosti i određenih refraktornih organskih frakcija. U nekim procesima, sono-ozonacija također može poboljšati tretman nizvodno pretvaranjem postojanih supstanci u biorazgradivije spojeve, čime se povećava efikasnost bioloških koraka tretmana.

Zatvoreni reaktori za efikasnu obradu i lako skaliranje

A practical advantage of sono-ozonation is that it can be implemented in closed reactor systems. Hielscher probe-type sonicators are particularly suitable for this type of integration because they deliver high-intensity ultrasound directly into the liquid through a titanium sonotrode. The probe can be mounted into a closed vessel or flow-through reactor using appropriate ports, flanges, or fittings. At the same time, ozone can be introduced through a gas inlet, diffuser, sparger, or recirculation loop. This allows ultrasound and ozone to act simultaneously within the same reaction volume.

Such a setup is straightforward and scalable. The closed reactor contains the liquid to be treated, while the ultrasonic probe transfers acoustic energy directly into the medium. Ozone flows continuously or intermittently through the reactor, depending on the process requirements. The ultrasound improves ozone dispersion and contact with the liquid phase, while the closed configuration helps contain ozone safely and enables controlled off-gas handling. Excess ozone can be directed to an ozone destructor or suitable exhaust treatment system. Important operating parameters include ultrasonic amplitude, power input, treatment time, ozone concentration, gas flow rate, temperature, pressure, pH, and reactor geometry.

Hielscher sonikatori za ozonaciju i naprednu oksidaciju

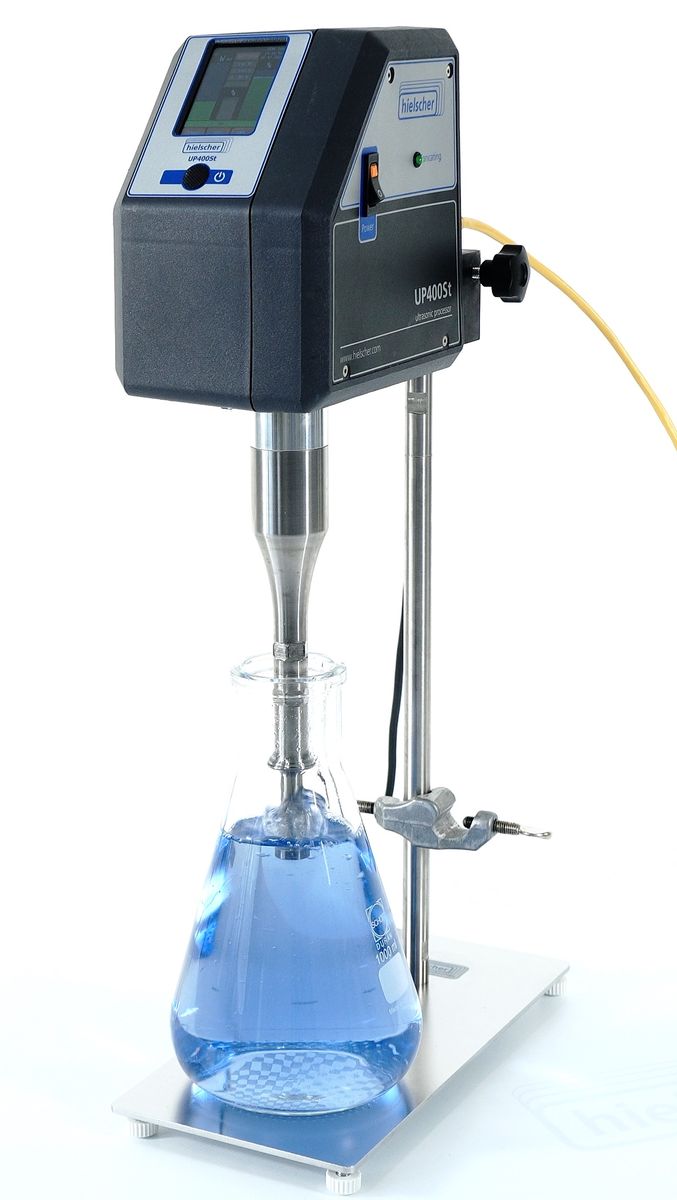

Hielscher sonikatori tipa sonde mogu se koristiti za serijske ili kontinuirane procesi sono-ozonacije. U laboratorijskom razvoju, kompaktni ultrazvučni uređaji omogućavaju istraživačima da ocijene kinetiku reakcija, razgradnju zagađivača i smanjenje mikroba pod kontrolisanim uvjetima. Za pilot i industrijsku primjenu, snažniji ultrazvučni sistemi mogu se integrirati u veće rezervoare ili reaktore s kontinuiranim protokom. Budući da sonikacija sondom efikasno uvodi energiju u tečnost, ona je dobro pogodna za intenzifikaciju procesa gdje su potrebna jaka kavitacija i pouzdana reproduktivnost.

Sono-ozonacija predstavlja vrlo efikasan sinergijski metod koji kombinuje hemijsku oksidacijsku moć ozona sa fizičkim i sonokemijskim efektima ultrazvuka. Proces povećava formiranje radikala, poboljšava masovni prijenos gas-tečnost, ubrzava degradaciju zagađivača i pojačava antimikrobnu aktivnost. Njegova kompatibilnost sa zatvorenim reaktorima i direktna integracija Hielscher sondi tipa sonikatora čini sono-ozonaciju praktičnim i svestranim pristupom za tretman životne sredine, pročišćavanje vode, sanaciju otpadnih voda i primjene napredne oksidacije.

Tabela ispod daje vam indikaciju približnih kapaciteta obrade naših ultrazvučnih aparata:

Dizajn, proizvodnja i konsalting – Kvaliteta Made in Germany

Hielscher ultrasonicatori su poznati po najvišoj kvaliteti i standardima dizajna. Robusnost i jednostavan rad omogućavaju nesmetanu integraciju naših ultrazvučnih aparata u industrijske objekte. Hielscher ultrasonikatori lako se nose sa teškim uslovima i zahtevnim okruženjima.

Hielscher Ultrasonics je ISO sertifikovana kompanija i stavlja poseban naglasak na ultrazvučne aparate visokih performansi koji se odlikuju najsavremenijom tehnologijom i lakoćom korišćenja. Naravno, Hielscher ultrasonikatori su usklađeni sa CE i ispunjavaju zahtjeve UL, CSA i RoH.
