UIP1000-Exd – 1.0kW ATEX ultrazvučni mikser

The UIP1000-Exd (20 kHz, 1000 W) is a safety-certified ultrasonic processor engineered specifically for handling flammable liquids and solvents in hazardous environments. Fully ATEX-compliant, it delivers controlled, high-intensity cavitation for critical formulation tasks–including emulsification of immiscible phases, uniform particle dispersion, nano-scale fine milling, and high-shear homogenization. By combining precise energy delivery with strict explosion-proof safety standards, this unit enables manufacturers to process volatile or sensitive formulations with confidence, ensuring consistent product quality, enhanced throughput, and full regulatory compliance.

ATEX certificirani UIP1000-Exd je moćan sonikator vrste sonde snage 1000 vata, proizveden za ultrazvučne obrade u opasnim područjima. UIP1000-Exd je ATEX certificiran u skladu sa standardima DIN EN 60079-0, 60079-1 i 60079-11 (EU standardi II 2G Ex de IIA T4 ATEX i II 2G Ex d e ib [ib] IIA T4 ATEX). UIP1000-Exd je kompletan ultrazvučni sistem za proces R&D ili industrijska prerada.

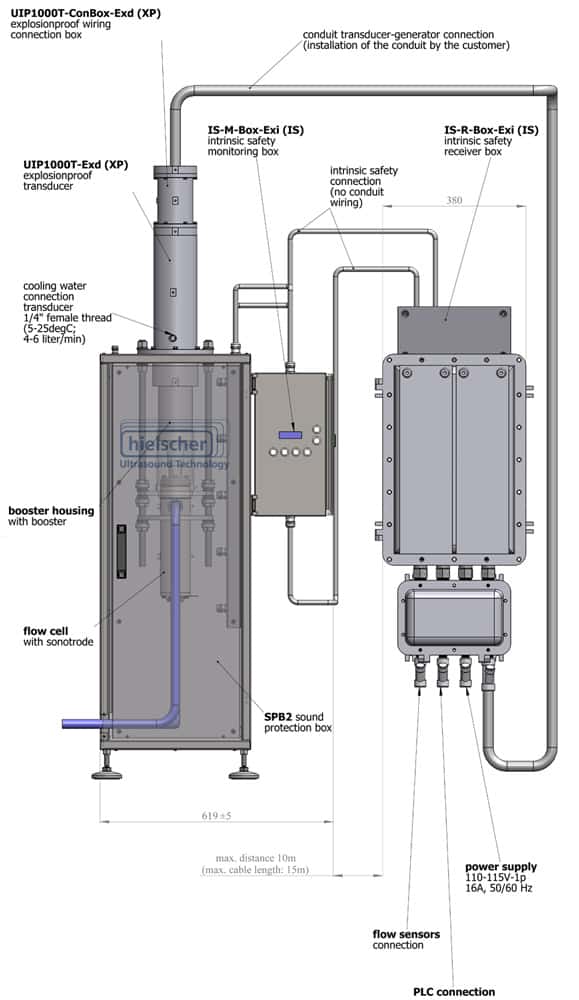

Sonikator UIP1000-Exd – Dizajniran za rad u opasnim okruženjima

Designed and built for hazardous environments, the UIP1000-Exd features a stainless steel transducer and flow cell, paired with a robust titanium sonotrode. As the ATEX-certified variant of the standard UIP1000hd, it delivers identical high-performance capabilities designed specifically for the inline mixing and dispersing of volatile solvents. This makes it an ideal solution for the production of biodiesel, as well as the formulation of solvent-based paints, inks, and chemical coatings. The system offers high modularity; the flow cell geometry can be easily adapted with various pipe/hose connections, internal volumes, and sonotrode sizes to match specific throughput requirements. For enhanced process efficiency, the flow cell is pressurizable up to 5.9 barg (100 psig) to maximize cavitation intensity and is equipped with a cooling jacket for precise temperature control during ultrasonication.

Ćelija protoka se nalazi unutar komore za izolaciju buke od nehrđajućeg čelika.
Tipični kapaciteti obrade UIP1000-Exd kreću se od 1 do 5m³ (220 do 1100 galona) dnevno.
UIP1000-Exd je dizajniran da zahtijeva vrlo malo prostora. Kompletan ultrazvučni sistem je visok 1,7m (67 inča), a površina je približno 0,25m² (2,7 sqft).
Operativna ultrazvučna jedinica teži 110kg (243lbs). UIP1000-Exd je dostupan za 115V~ ili 230V~ (jednofazni).

Dizajn otporan na eksplozije čini UIP1000-Exd savršenim ultrazvučnim homogenizatorom za obradu

• boja, lakova i premaza
• mastila
• hemikalije, fini hemijski proizvodi, agrohemikalije
• preradu goriva
• Proizvodnja biodizela
• ekstrakcija na bazi rastvarača (npr. korištenje heksana)
• farmaceutske primjene (npr. procesi na bazi rastvarača).

Brojevi potvrde modela tehničke verifikacije

IBExU08ATE1016(X) za sondu za ultrazvučni procesor tip UIP1000T-Ex

IBExU08ATE1017(X) za generator za ultrazvučni procesor tip UIP1000G-Ex
