Effects of Sonication on Conductivity and pH Value of Water

Conductivity and pH value of water can be efficiently influenced by treating water with high-intensity, low-frequency ultrasound. Sonication of water results in increased conductivity and pH values in water.

Influence of Power Ultrasound on Electric Conductivity

Tests were performed using the ultrasonic probe-type device UP400St in order to investigate the influence of ultrasonication on the conductivity of distilled water. Two (passive, non-sonicating) electrodes were inserted into the wide sonication vessel, the ultrasonic probe was mounted between the electrodes. As the chart below shows, the conductivity increases, as well as the pH value.

How to Take Advantage of Ultrasonic Changes in Electric Conductivity

The increase of electric conductivity has several advantages when it comes to elecrolysis and electrochemical applications. Reducing the resistance in electrolysis applications allows to cut back on the addition of salts, acids or bases, which are commonly used to modify the conductivity and resistance of liquids such as water in electrolyzers.

Ultrasonication increases the conductivity and pH value of water

Ultrasonication of water shows effects on conductivity and pH value

Zahtjev za informacije




Imajte na umu naše politika privatnosti.

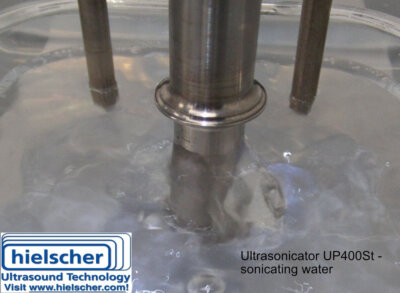

Probe-type ultrasonicator treating water results in changes of conductivity and pH value of water.

Ultrasonication of water results in increased conductivity and increased pH value of water.

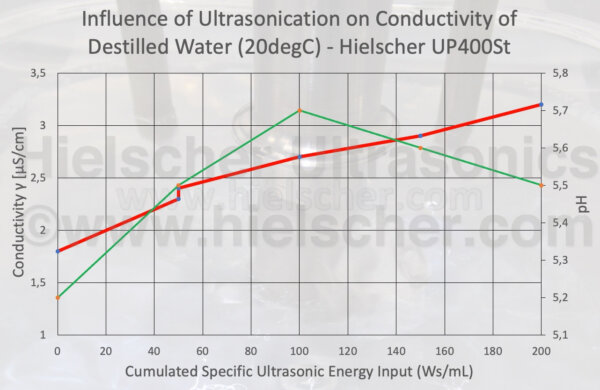

The chart shows the increased electric conductivity of distilled water under sonication

Electric conductivity of distilled water is increased under sonication.

Probe-Type Ultrasonicators for High-Performance Application

Hielscher Ultrasonics offers a wide portfolio of high-performance probe-type ultrasonicators for liquid applications, e.g. influencing electric conductivity and pH value of fluids. Fulfilling easily common industrial standards, Hielscher ultrasonic equipment can be operated 24/7 under full load and demanding conditions.
Donja tablica daje vam naznaku približnog kapaciteta obrade naših ultrazvučnih uređaja:

Volumen serijeProtokPreporučeni uređaji
1 do 500 ml10 do 200 ml/minUP100H
10 do 2000 ml20 do 400 ml/minUP200Ht, UP400St
0.1 do 20L0.2 do 4L/minUIP2000hdT
10 do 100l2 do 10L/minUIP4000hdT
na10 do 100L/minUIP16000
navećiklaster od UIP16000

Contact Us! / Ask Us!

Pitajte za više informacija

Molimo upotrijebite donji obrazac kako biste zatražili dodatne informacije o ultrazvučnim procesorima, primjeni i cijeni. Bit će nam drago razgovarati s vama o vašem procesu i ponuditi vam ultrazvučni sustav koji odgovara vašim zahtjevima!









Imajte na umu naše politika privatnosti.

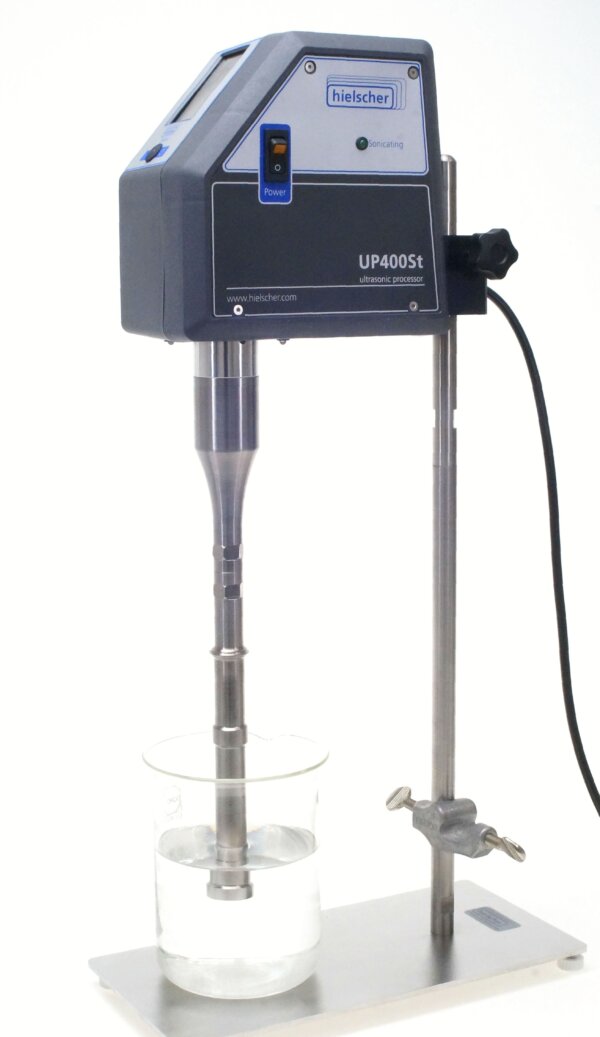

Probe-type ultrasonicator UP400St sonicating water: Ultrasonication increases the electric conductivity of water

Sonicating water with the probe-type ultrasonicator UP400St: Sonication increases the electric conductivity of water



Literatura / Reference
